Intel 1037U User Manual

27

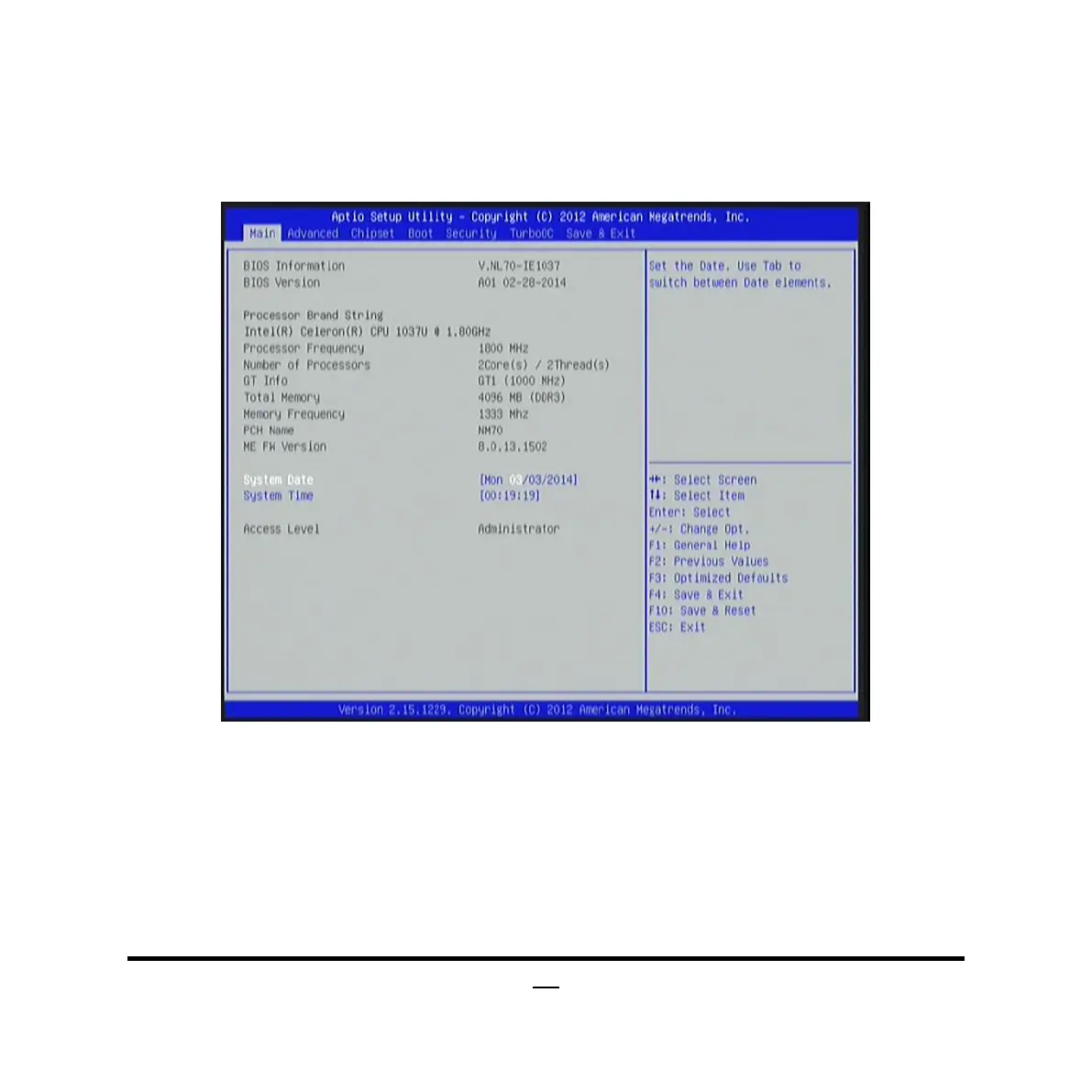

3-6 Main Menu
Main menu screen includes some basic system information. Highlight the item and
then use the <+> or <-> and numerical keyboard keys to select the value you want in
each item.
System Date
Set the date. Please use [Tab] to switch between data elements.
System Time
Set the time. Please use [Tab] to switch between time elements.

Intel 1037U Specifications

General

CPU Series	Intel Celeron
CPU Model	1037U
Cores	2
Threads	2
Clock Speed	1.8 GHz
TDP	17 W
Cache	2 MB
Max Memory Size	16 GB
Graphics Base Frequency	350 MHz
Graphics Max Dynamic Frequency	1.0 GHz
PCI Express Revision	2.0
SATA Ports	2
Instruction Set	64-bit
Socket	BGA1023
Integrated Graphics	Intel HD Graphics
Memory Type	DDR3
CPU Socket	FCBGA1023
Memory Types	DDR3 1333/1600
USB Revision	3.0
Instruction Set Extensions	SSE4.1/4.2
