2-2 Connectors and Headers
2-2-1 Connectors

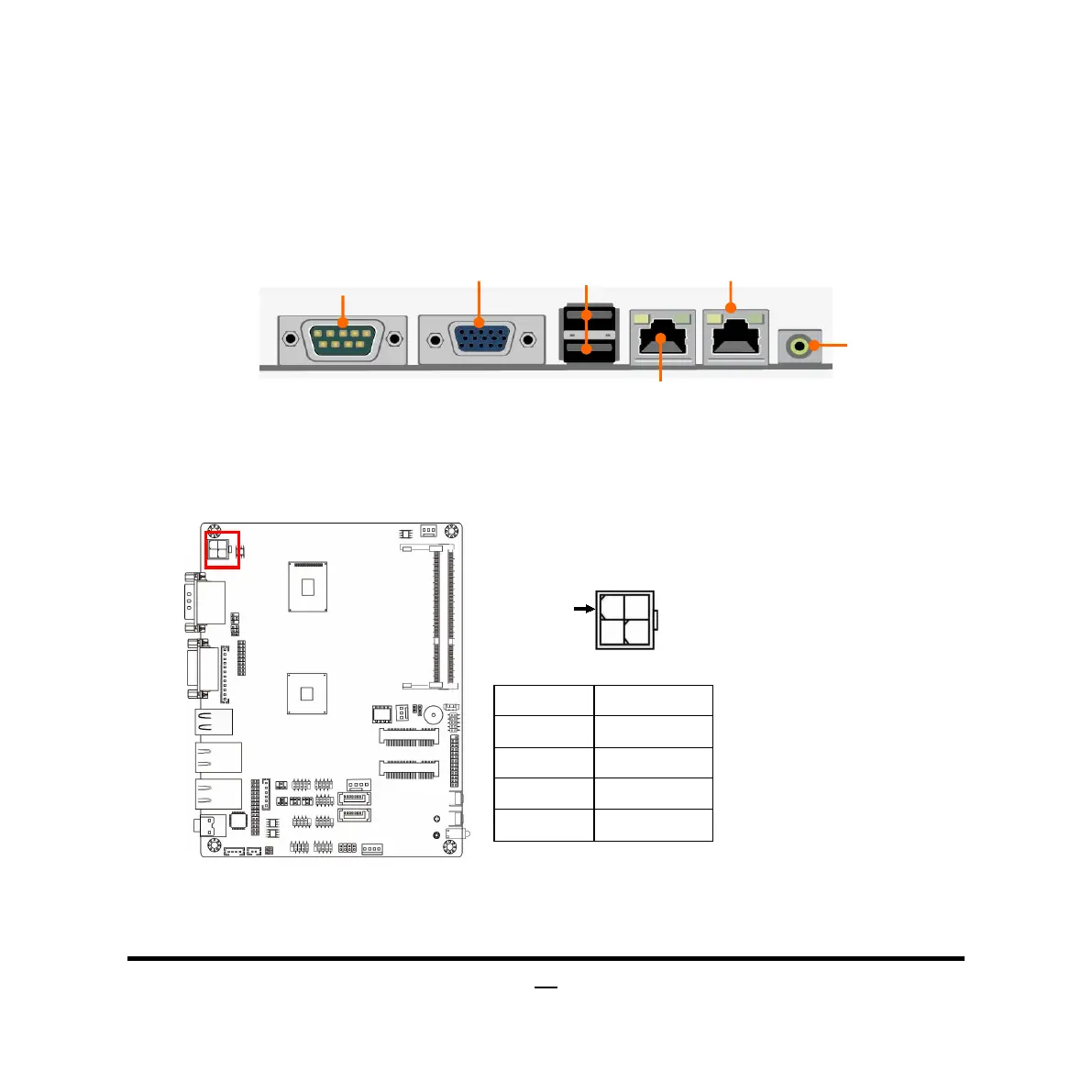

(1) Rear IO Diagram Connectors
(2) DCIN1 (4-pin block):10V~24V Power Connector
Pin1
Pin No. Definition
1 GND
2 GND
3 +10V~+24V
4 +10V~+24V
VGA Port
Line-Out Port
USB 2.0 Ports
COM1 Port
RJ-45 LAN Port
RJ-45 LAN Port
