Intel 1037U User Manual

3

5* COM header

1* TX-RXCOM header

1 * Parallel header

1 *GPIO header

1 *12-pin VGA header

1 *20-pin HDMI header

1 *24-bit Dual Channel LVDS header

1* LVDS inverter header

JP3: 1*LVDS panel brightness adjustment header

1*CPU fan header

2*System fan header
1-3 Layout Diagram

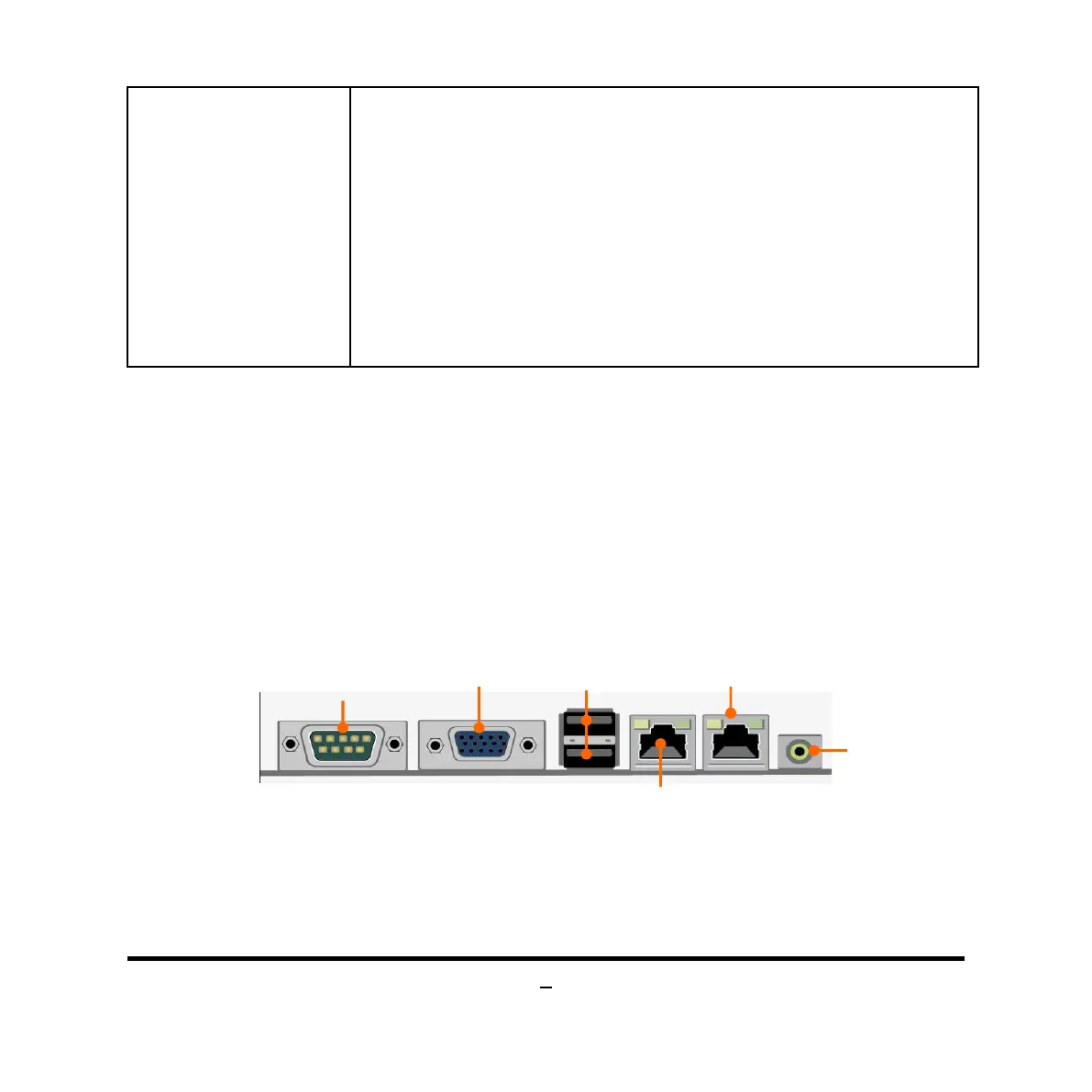

Rear IO Diagram
VGA Port
Line-Out Port
USB 2.0 Ports
COM1 Port
RJ-45 LAN Port
RJ-45 LAN Port

Intel 1037U Specifications

General

CPU Series	Intel Celeron
CPU Model	1037U
Cores	2
Threads	2
Clock Speed	1.8 GHz
TDP	17 W
Cache	2 MB
Max Memory Size	16 GB
Graphics Base Frequency	350 MHz
Graphics Max Dynamic Frequency	1.0 GHz
PCI Express Revision	2.0
SATA Ports	2
Instruction Set	64-bit
Socket	BGA1023
Integrated Graphics	Intel HD Graphics
Memory Type	DDR3
CPU Socket	FCBGA1023
Memory Types	DDR3 1333/1600
USB Revision	3.0
Instruction Set Extensions	SSE4.1/4.2
