Intel 1037U User Manual

4

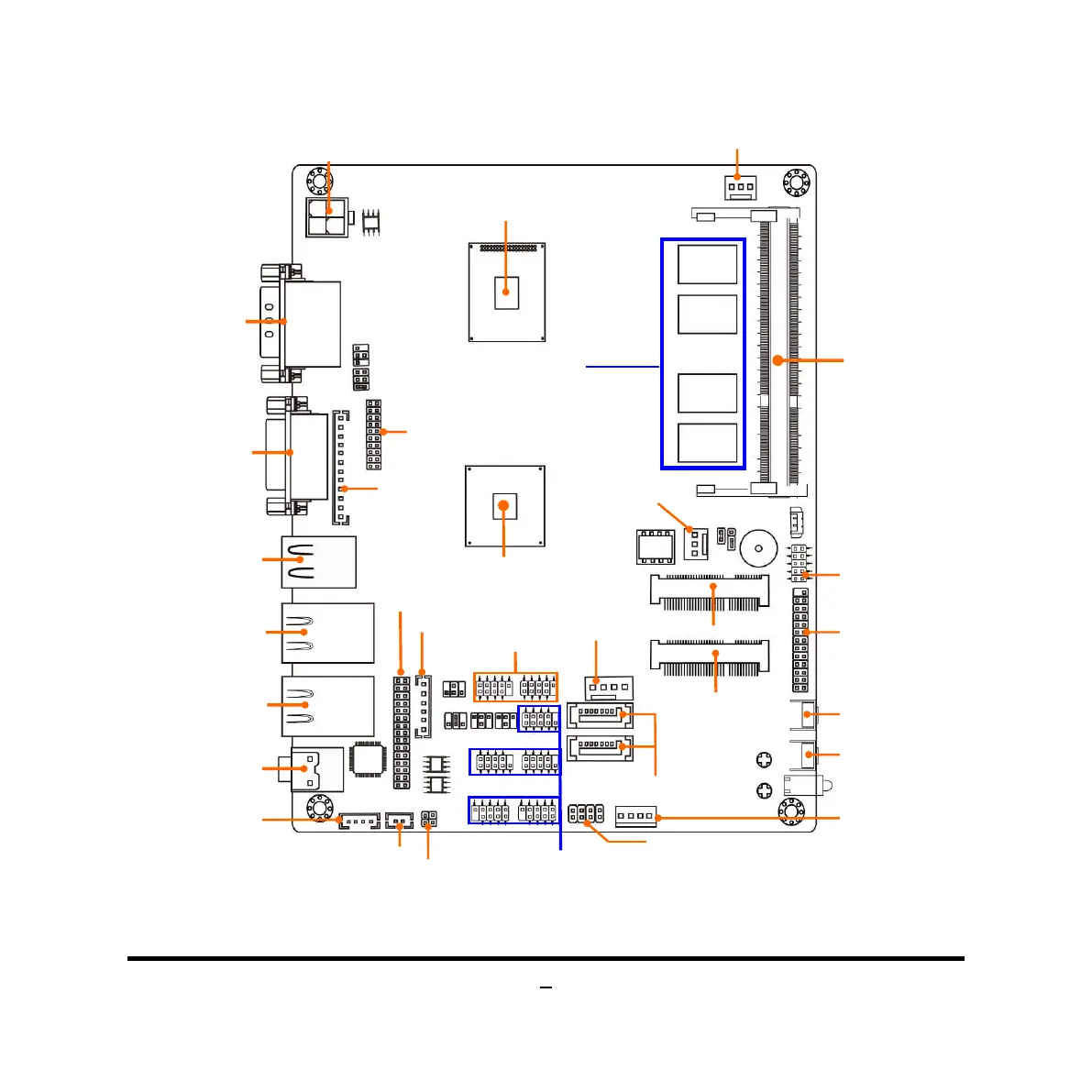

Motherboard Internal Diagram--Front
*Note:
This manual serves as common manual for NL70-IE1037 & NL70-IE1037-2G series. The main
deference between the two models is NL70-IE1037-2G comes with onboard 2G DRAM.
10V~24V
Power Connector
DDRIII
SODIMM Slot
VGA Port
Intel CPU
Intel NM70 Chipset
Front Panel Header
M-SATA Connector
USB 2.0 Ports
RJ-45 LAN Port
Parallel Port Header
COM Port Headers
SATAII Ports
GPIO Header
SATA Hard Disk
Power-Out Connector
SYSFAN3 Header
Half-size
Mini-
PCIE
Connector
JP3
USB 2.0 Header
COM1 Port
HDMI Header
TX-RX COM1 Header
RJ-45 LAN Port
Line-Out Port
LVDS Header
LVDS Inverter
VGA Header
CPUFAN1 Header
Power Switch
Button
Reset Button
SYSFAN1 Header
SPEAKER_CON
Header
* DRAM 2G Onboard
(Optional for NL70-IE1037-2G)

Intel 1037U Specifications

General

CPU Series	Intel Celeron
CPU Model	1037U
Cores	2
Threads	2
Clock Speed	1.8 GHz
TDP	17 W
Cache	2 MB
Max Memory Size	16 GB
Graphics Base Frequency	350 MHz
Graphics Max Dynamic Frequency	1.0 GHz
PCI Express Revision	2.0
SATA Ports	2
Instruction Set	64-bit
Socket	BGA1023
Integrated Graphics	Intel HD Graphics
Memory Type	DDR3
CPU Socket	FCBGA1023
Memory Types	DDR3 1333/1600
USB Revision	3.0
Instruction Set Extensions	SSE4.1/4.2
