Intel 1037U User Manual

41
tRRD
The setting range for ‘Min Ras Active to ROW Active Delay’ is from [1] to [38].
tWTR
The setting range for ‘Internal Write to Read Command Delay Time’ is from [1]
to [38].
tRTP
The setting range for ‘Internal Read to Precharge Command Delay Time’ is
from [1] to [38].
tFAN
The setting range for ‘Min Four Activate Window Delay Time’ is from [1] to [586].
Command Rate
The optional settings are: [Auto]; [1T]; [2T].

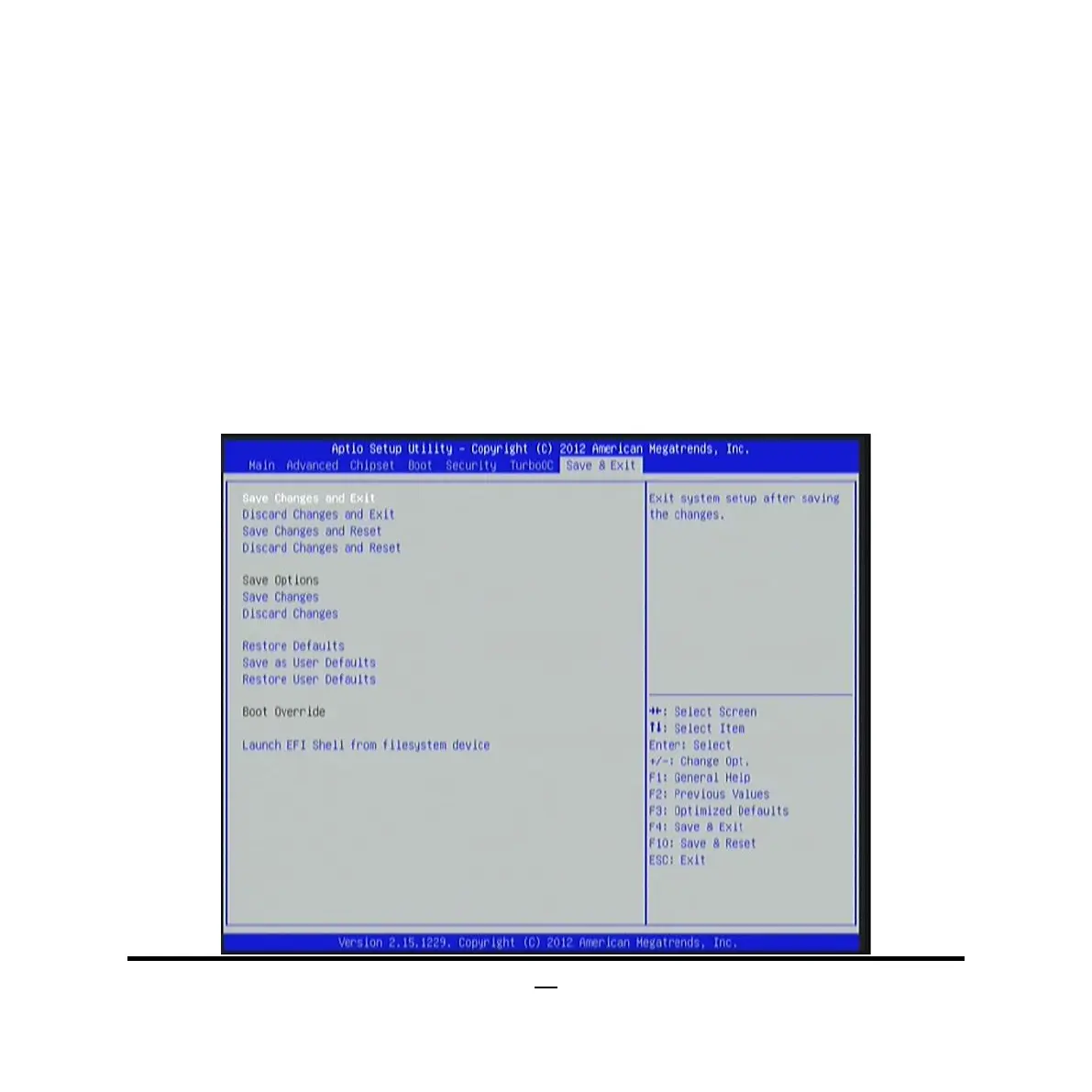

3-12 Save & Exit Menu

Intel 1037U Specifications

General

CPU Series	Intel Celeron
CPU Model	1037U
Cores	2
Threads	2
Clock Speed	1.8 GHz
TDP	17 W
Cache	2 MB
Max Memory Size	16 GB
Graphics Base Frequency	350 MHz
Graphics Max Dynamic Frequency	1.0 GHz
PCI Express Revision	2.0
SATA Ports	2
Instruction Set	64-bit
Socket	BGA1023
Integrated Graphics	Intel HD Graphics
Memory Type	DDR3
CPU Socket	FCBGA1023
Memory Types	DDR3 1333/1600
USB Revision	3.0
Instruction Set Extensions	SSE4.1/4.2
