Intel Desktop Board D945GTP Technical Product Specification
18
1.4.1.1 Dual Channel (Interleaved) Mode Configurations

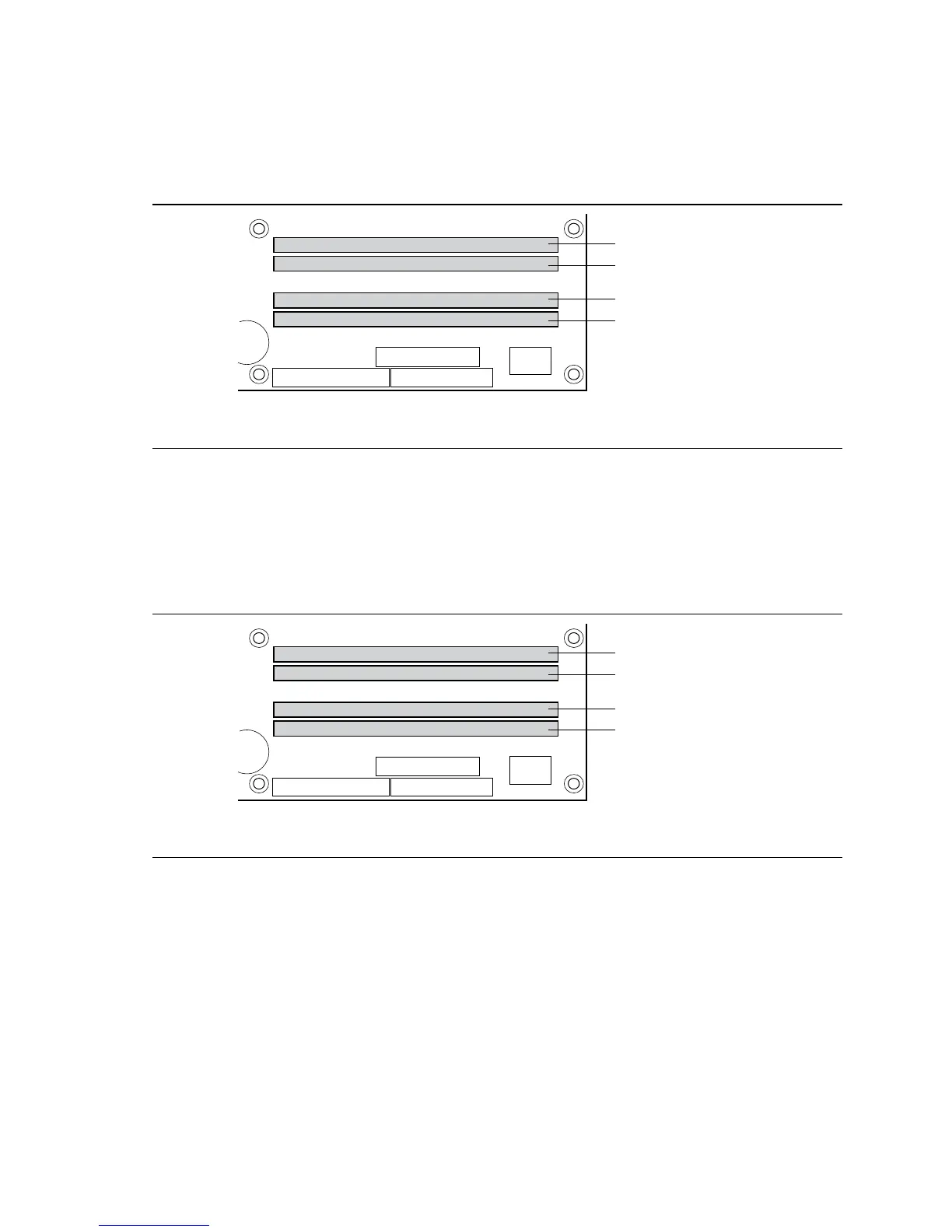

Figure 4 shows a dual channel configuration using two DIMMs. In this example, the DIMM0
(blue) sockets of both channels are populated with identical DIMMs.
OM17123
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
1 GB
1 GB
Figure 4. Dual Channel (Interleaved) Mode Configuration with Two DIMMs
Figure 5 shows a dual channel configuration using three DIMMs. In this example, the combined
capacity of the two DIMMs in Channel A equal the capacity of the single DIMM in the DIMM0
(blue) socket of Channel B.
OM17122
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
256 MB
512 MB
256 MB
Figure 5. Dual Channel (Interleaved) Mode Configuration with Three DIMMs
