Product Description
29
Side Surround
Left and Right/
Line In/Retasking Jack
[Blue]
Line Out/Retasking Jack
[Lime Green]
Mic In/Retasking Jack
[Pink]
OM17816
Mic In
Front Panel
Audio Connectors
Line Out
Surround Left and Right/Retasking Jack
[Black]
Center channel and LFE (Subwoofer)/
Retasking Jack [Orange]
S/PDIF Digital Audio Out
Optical

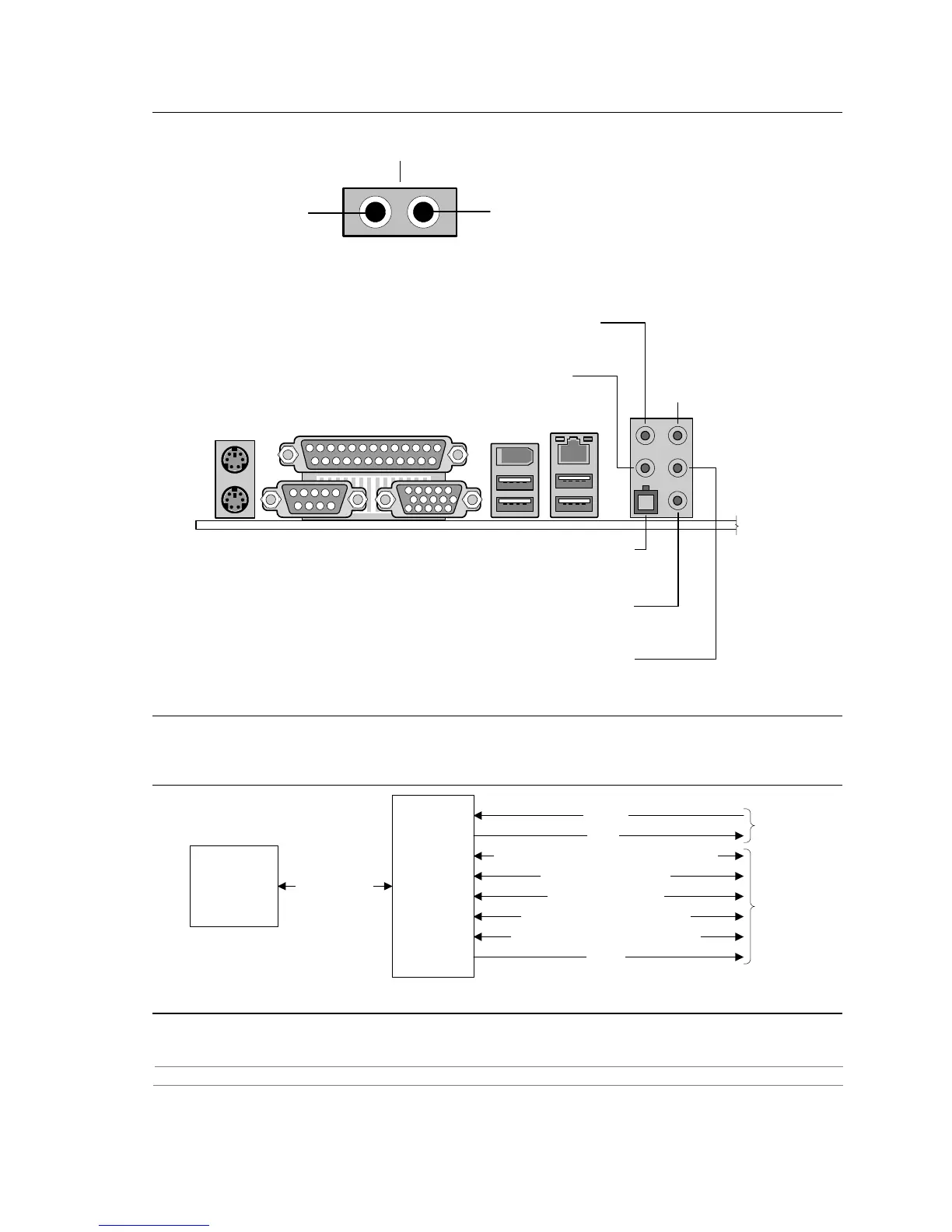

Figure 9. Front/Back Panel Audio Connector Options for 8-Channel (7.1) Audio Subsystem
Figure 10 is a block diagram of the 8-channel (7.1) audio subsystem.
82801G
I/O Controller
Hub
(ICH7)
OM17817
Intel
High Definition
Audio Link
Sigmatel
9223
Audio Codec
Line Out/Retasking Jack
Mic In
Line In/Side Surround L-R/Retasking Jack
Mic In/Retasking Jack
S/PDIF
Surround Left-Right/Retasking Jack
Center and LFE/Retasking Jack
Line Out
Back
Panel
Front
Panel
Figure 10. 8-channel (7.1) Audio Subsystem Block Diagram
For information about Refer to
The back panel audio connectors Section 2.8.1, page 53
