Intel Desktop Board D945GTP Technical Product Specification
54
2.8.1.1 Back Panel Connectors For 8-Channel (7.1) Audio Subsystem

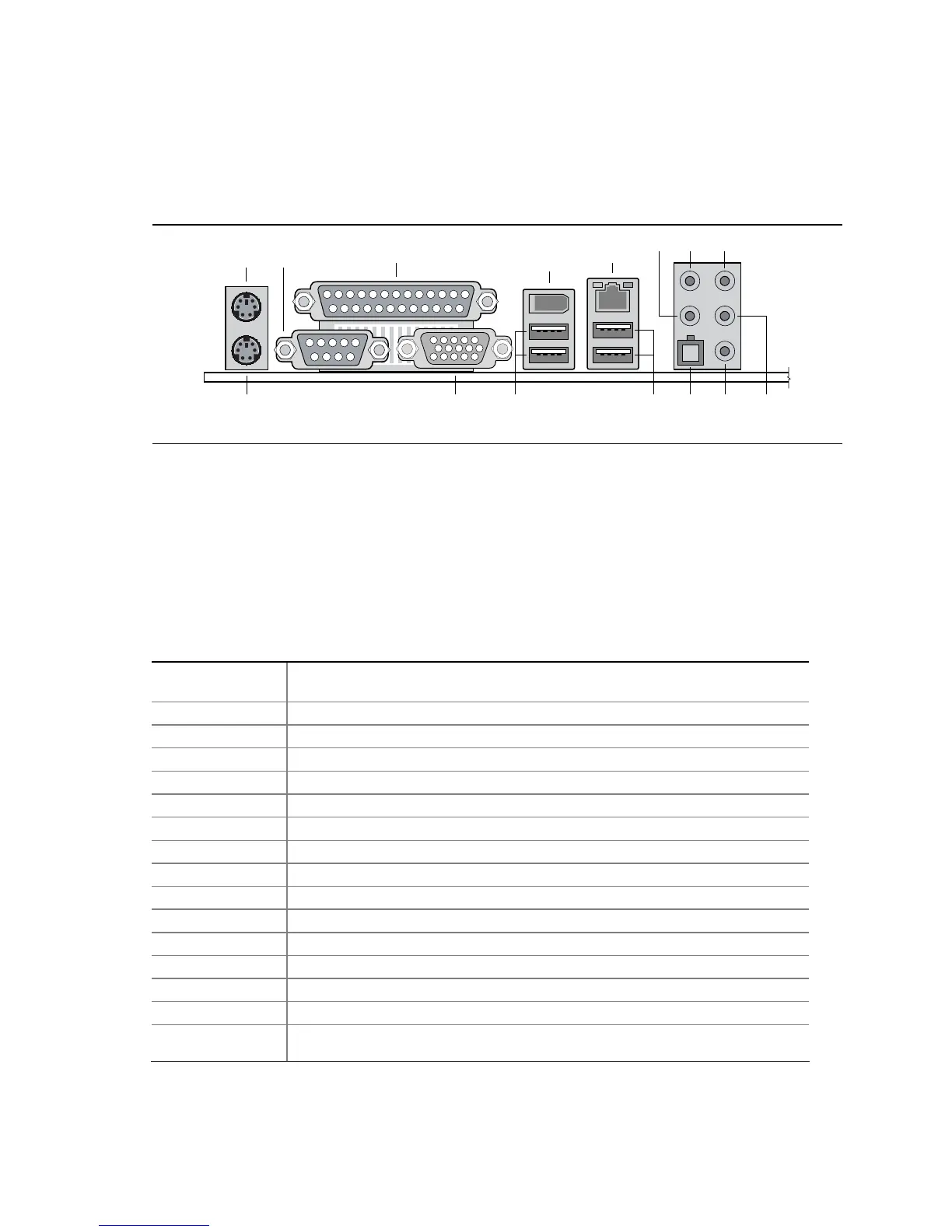

Figure 18 shows the location of the back panel connectors for boards equipped with the 8-channel
(7.1) audio subsystem. The back panel connectors are color-coded. The figure legend (Table 16)
lists the colors used (when applicable).
OM17558
AC
H
D
F
G IB E NM O
L
KJ
Figure 18. Back Panel Connectors for 8-Channel (7.1) Audio Subsystem
Table 16 lists the back panel connectors identified in Figure 18.
NOTE
The back panel audio line out connector is designed to power headphones or amplified speakers
only. Poor audio quality occurs if passive (non-amplified) speakers are connected to this output.
Table 16. Back Panel Connectors Shown in Figure 18
Item/callout from
Figure 18
Description
A
PS/2 mouse port [Green]
B
PS/2 keyboard port [Purple]
C
Serial port A [Teal]
D
Parallel port [Burgundy]
E
VGA port
F
IEEE-1394a connector
G USB ports (two)
H
LAN
I
USB ports (two)
J
Center channel and LFE (subwoofer) audio out/ Retasking Jack [Orange]
K
Surround left/right channel audio out/Retasking Jack [Black]
L
Audio line in/Retasking Jack [Blue]
M
Digital audio out optical
N Mic in/Retasking Jack [Pink]
O
Front left/right channel audio out/Two channel audio line out/Retasking Jack
[Lime green]
