Intel Desktop Board DP43BF Technical Product Specification
30
1.11.4 Thermal Monitoring

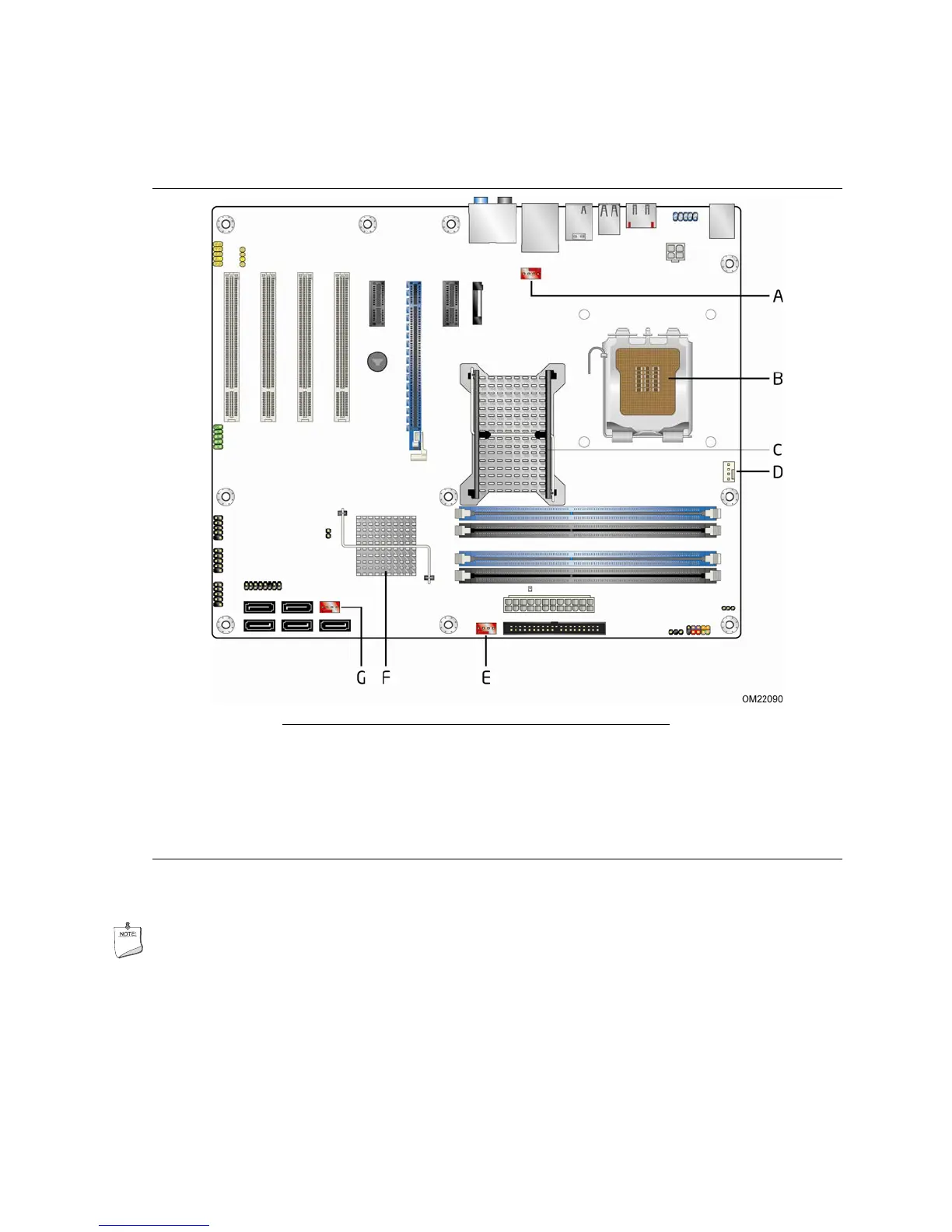

Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Rear chassis fan header
B Thermal diode, located on the processor die
C Thermal diode, located on the MCH die
D Processor fan header
E Front chassis fan header
F Thermal diode, located on the Intel ICH10R die
G Auxiliary chassis fan header
Figure 6. Thermal Sensors and Fan Headers
NOTE
The minimum thermal reporting threshold for the MCH is 66 °C. The MCH thermal
sensor will display 66 °C until the temperature rises above this point.
