Intel Desktop Board DP43BF Technical Product Specification
40
The amount of installed memory that can be used will vary based on add-in cards,
BIOS settings, and operating system installed. Figure 8 shows a schematic of the
system memory map. All installed system memory can be used when there is no
overlap of system addresses.

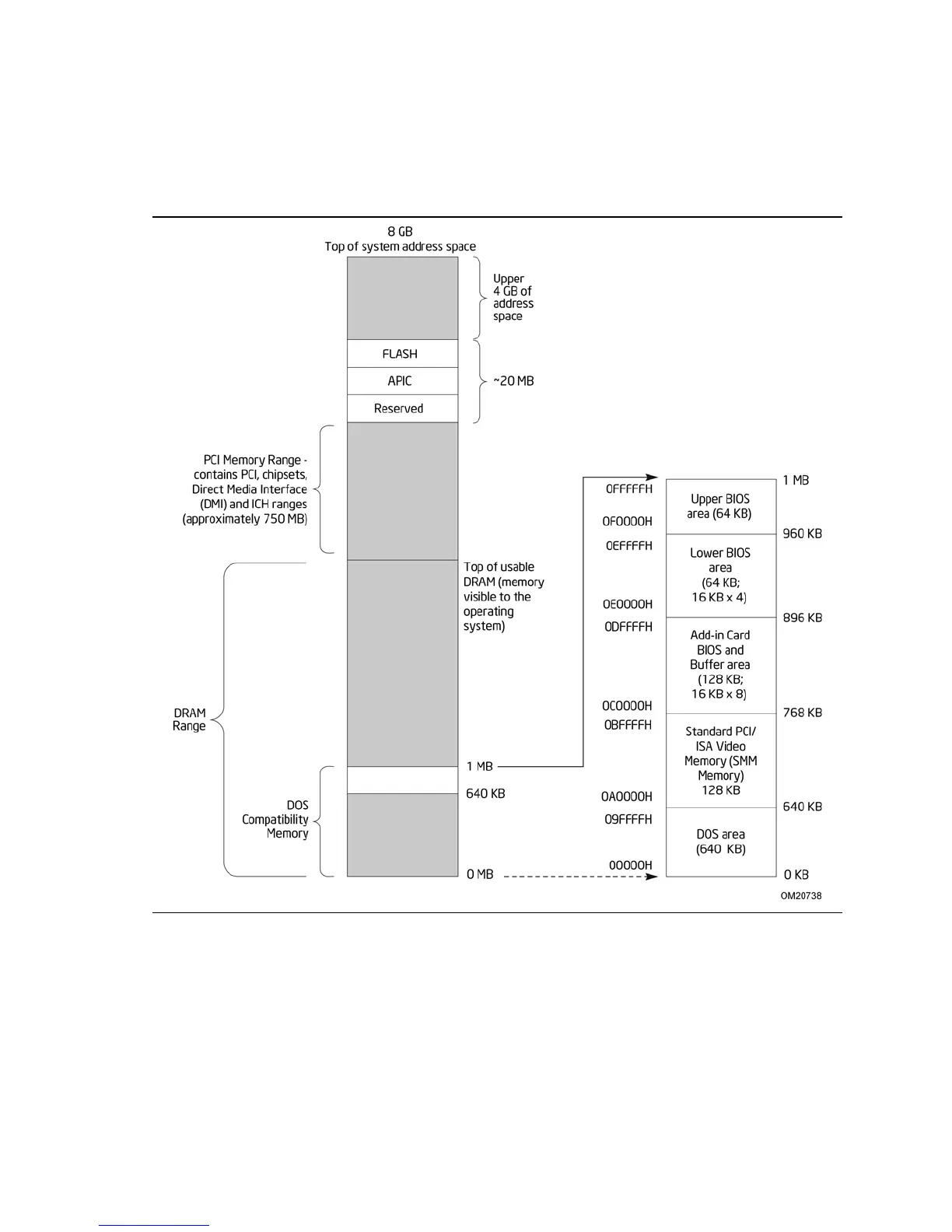

Figure 8. Detailed System Memory Address Map
