2.2.1 Back Panel Connectors

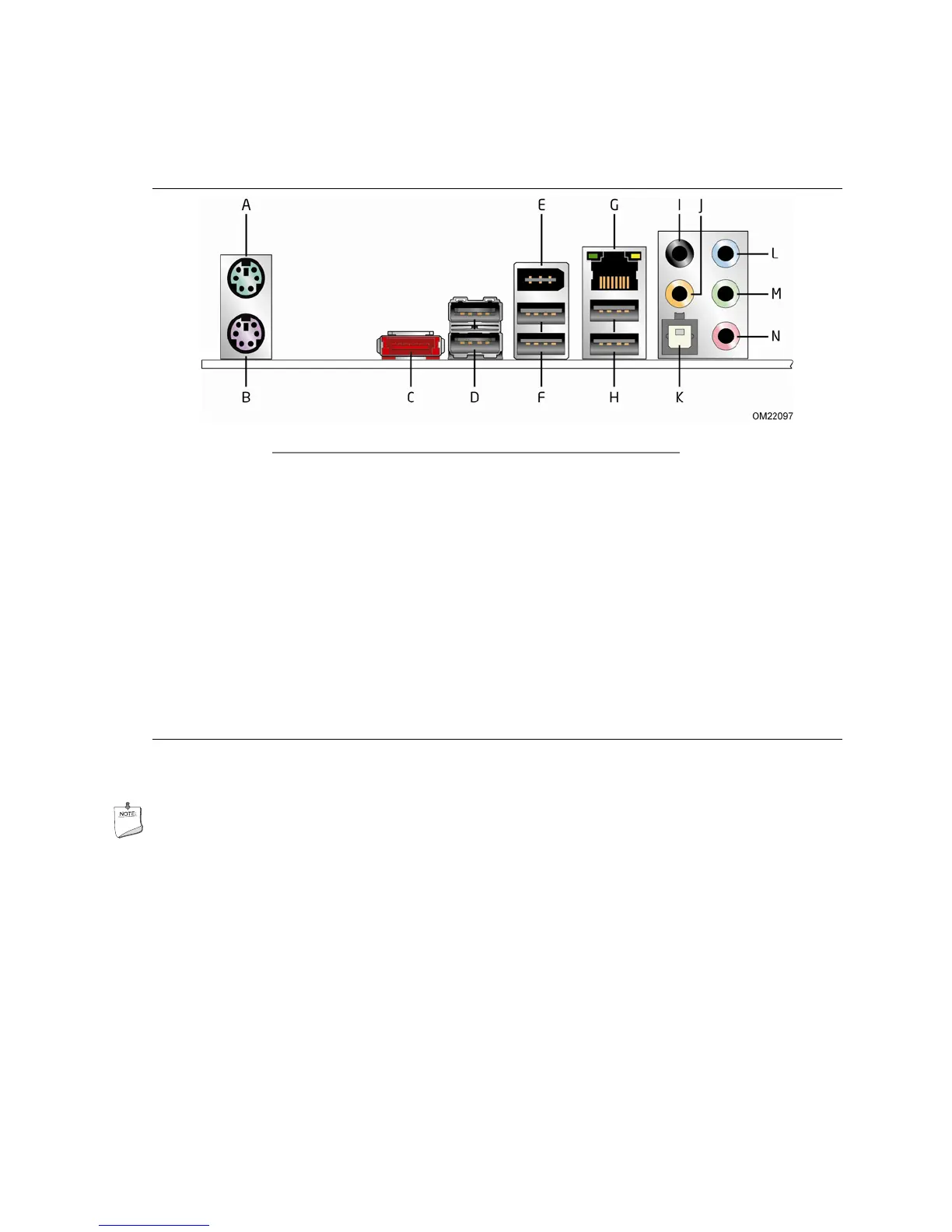

Figure 9 shows the location of the back panel connectors.
Item Description
A PS/2 keyboard/mouse port
B PS/2 keyboard/mouse port
C eSATA connector
D USB ports (2)
E IEEE 1394a connector
F USB ports (2)
G LAN
H USB ports (2)
I Rear surround
J Center channel and LFE (subwoofer) audio out
K S/PDIF digital audio out (optical)
L Headphones/line in/side surround
M Headphones/front speaker
N Mic in
Figure 9. Back Panel Connectors
NOTES
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
