Desktop Board Features
17
LAN Subsystem
The LAN subsystem includes:
• Intel
®
ICH10DO
• Intel 82567LM Gigabit (10/100/1000 Mb/s) Ethernet LAN controller with support
for:
⎯ Intel AMT 5.0
⎯ Alert Standard Format (ASF) 2.0
⎯ Virtual LAN driver support for Intel
®
Virtualization Technology (Intel
®
VT)
partitions
• RJ-45 LAN connector with integrated status LEDs
The subsystem features:
• CSMA/CD protocol engine
• LAN connect interface between ICH10DO and the LAN controller
• PCI Express power management
For information about LAN software and drivers go to
http://support.intel.com/support/motherboards/desktop
LAN Subsystem Software
For LAN software and drivers, refer to the Intel Desktop Board DQ45CB link on Intel’s
World Wide Web site at http://support.intel.com/support/motherboards/desktop
.
LAN Status Indicators
Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 2). These LEDs indicate the operating states of the LAN.

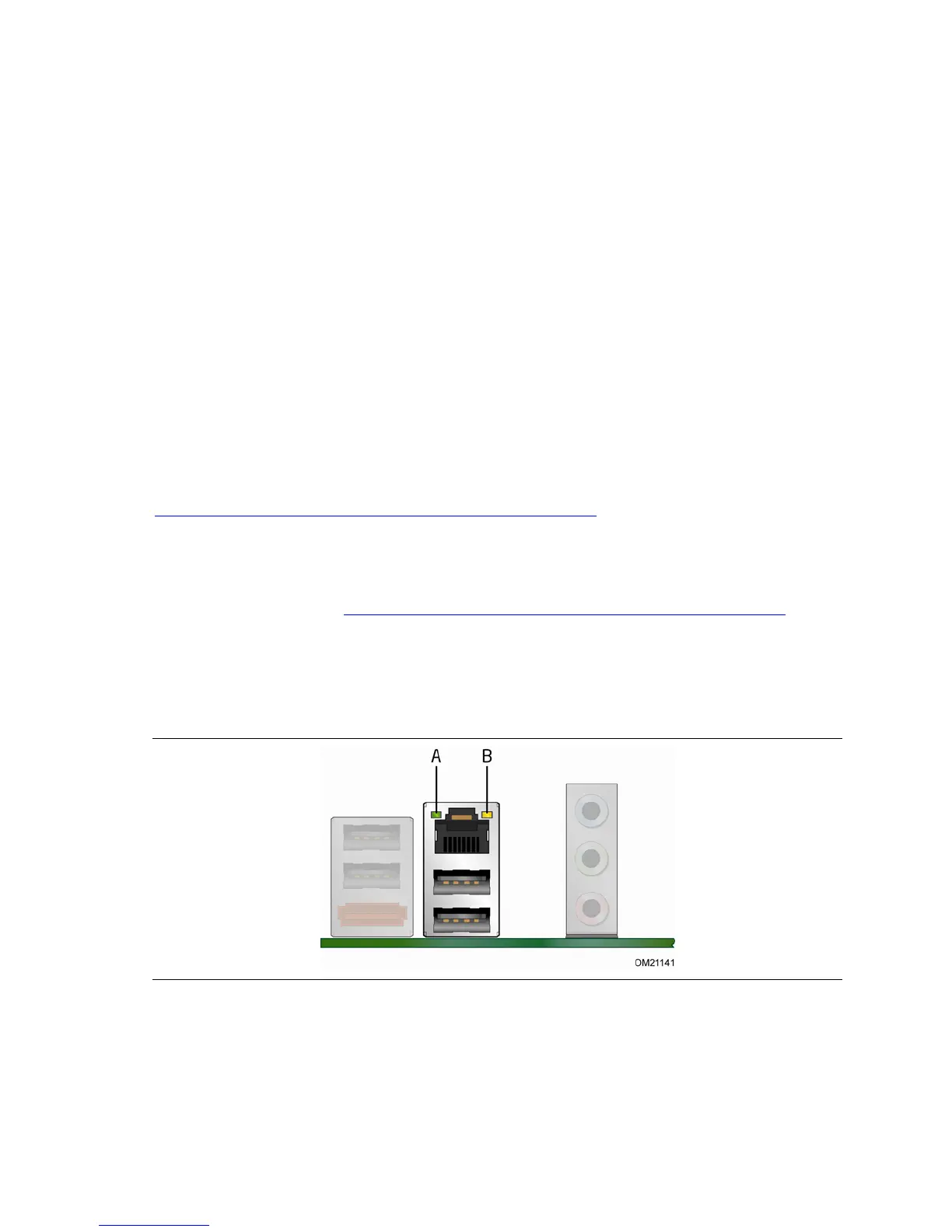

Figure 2. LAN Status LEDs
