Intel Desktop Board DQ45CB Product Guide
46
Connecting to Internal Headers
Before connecting cables to the internal
headers, observe
the precautions in “
Before
You Begin” on page
29.

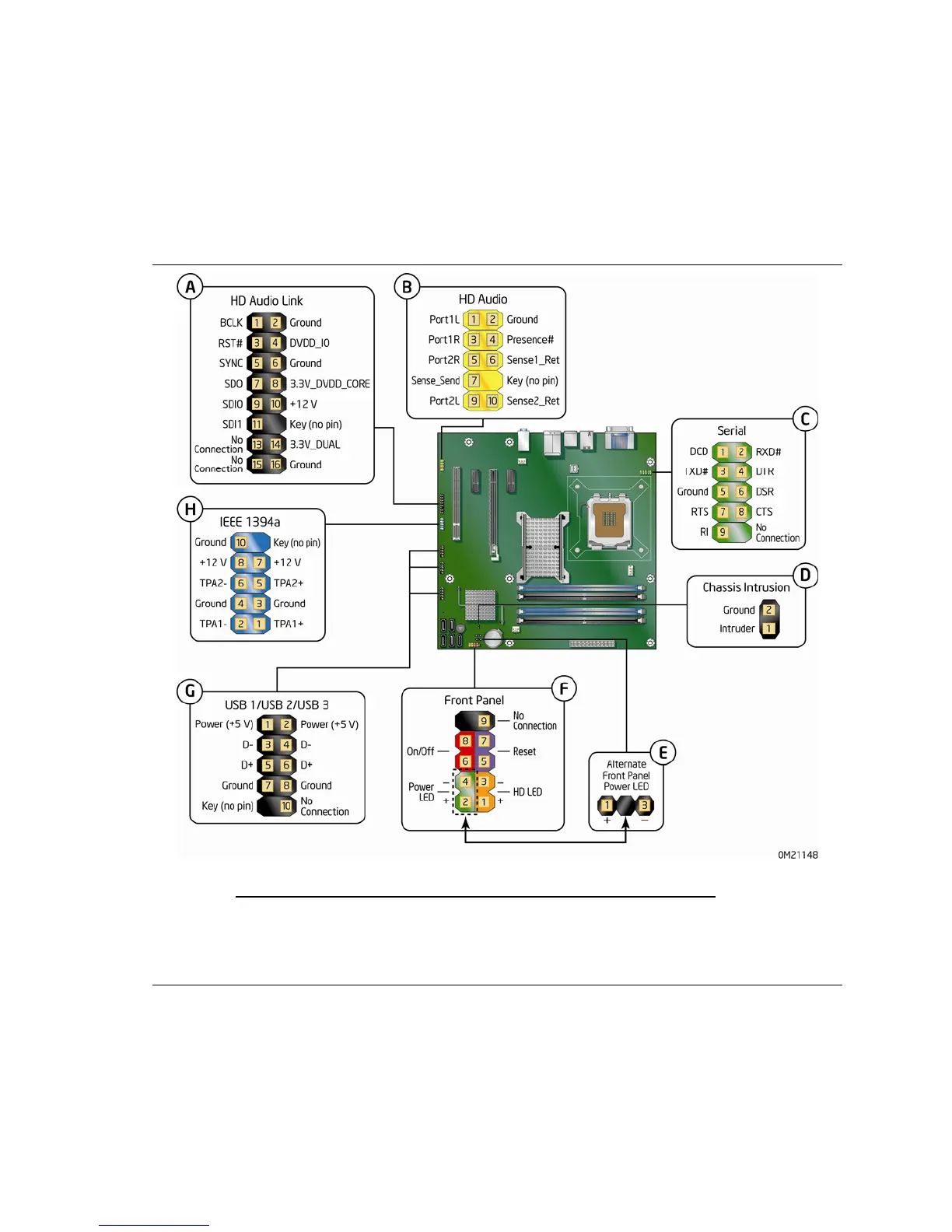

Figure 22 shows the location
of the internal headers and
connectors
.
Item Description
Item
Description
A
HD Audio Link
E
Alternate front pane
l power LED
B
HD Audio
F
Front panel
C
Serial
G
USB 2.0 (3)
D
Chassis intrusion
H
IEEE 1394a
Figure 22. Internal Headers
45
47
