Intel Desktop Board DQ45CB Product Guide
44
Removing the PCI Express x16 Card
Follow these instructions to remove the PCI Express x16 card from the connector:
1. Observe the precautions in "Before You Begin" on page 29.
2. Remove the screw
(Figure 20, A) that secures the card’s metal bracket to the
chassis back
panel.
3. Push the card ejector lever down using the tip of a pencil or similar tool
(Figure 20, B) in the notch. This will release the card from the connector (C).
4. P
u
ll the card straight up.

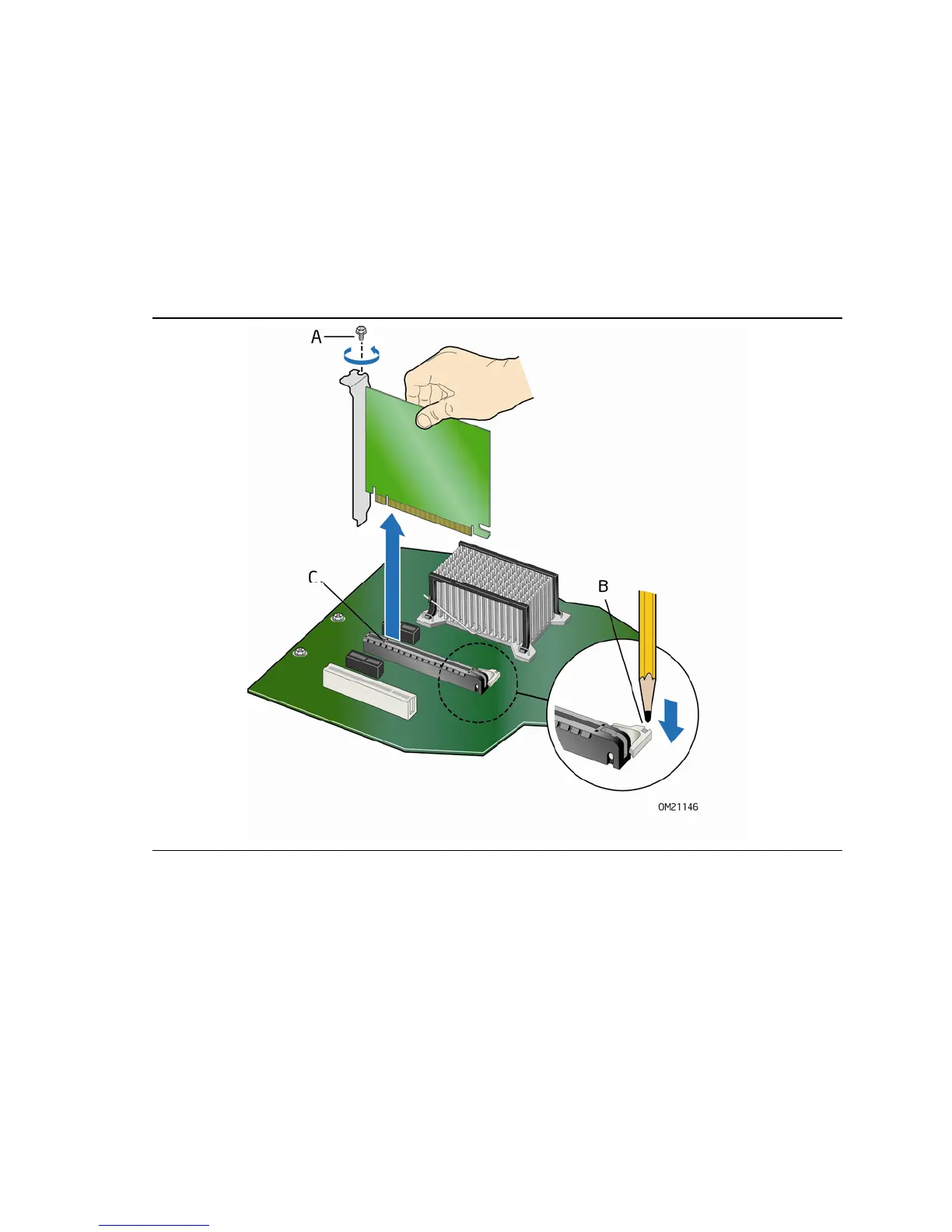

Figure 20. Removing a PCI Express x16 Card

Intel BLKDQ45CB Specifications

General

Form Factor	Micro ATX
Socket Type	LGA 775
Supported CPU	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Memory Slots	4
Max Memory	8GB
Memory Standard	DDR2 800/667 MHz
Video Outputs	VGA, DVI-D
Chipset	Intel Q45 Express
Memory Type	DDR2
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 1 x PCI
Storage	SATA 3.0 Gb/s
USB Ports	8 x USB 2.0
Audio	Realtek ALC888S
LAN	Intel 82567LM Gigabit Ethernet
