Installing and Replacing Desktop Board Components
37
Connecting the Processor Fan Heat Sink Cable
Connect the processor fan heat sink cable to the 4-pin processor fan header (see
Figure 13). A fan with a 4-pin co
nnector as shown in Figure 13, A is recommended;
however, a fan with a 3-pin connector (Figure 13, B) can be used. However, since a
fan wi
th a 3-pin connector cannot use the onboard fan control, the fan will always
operate at full speed.

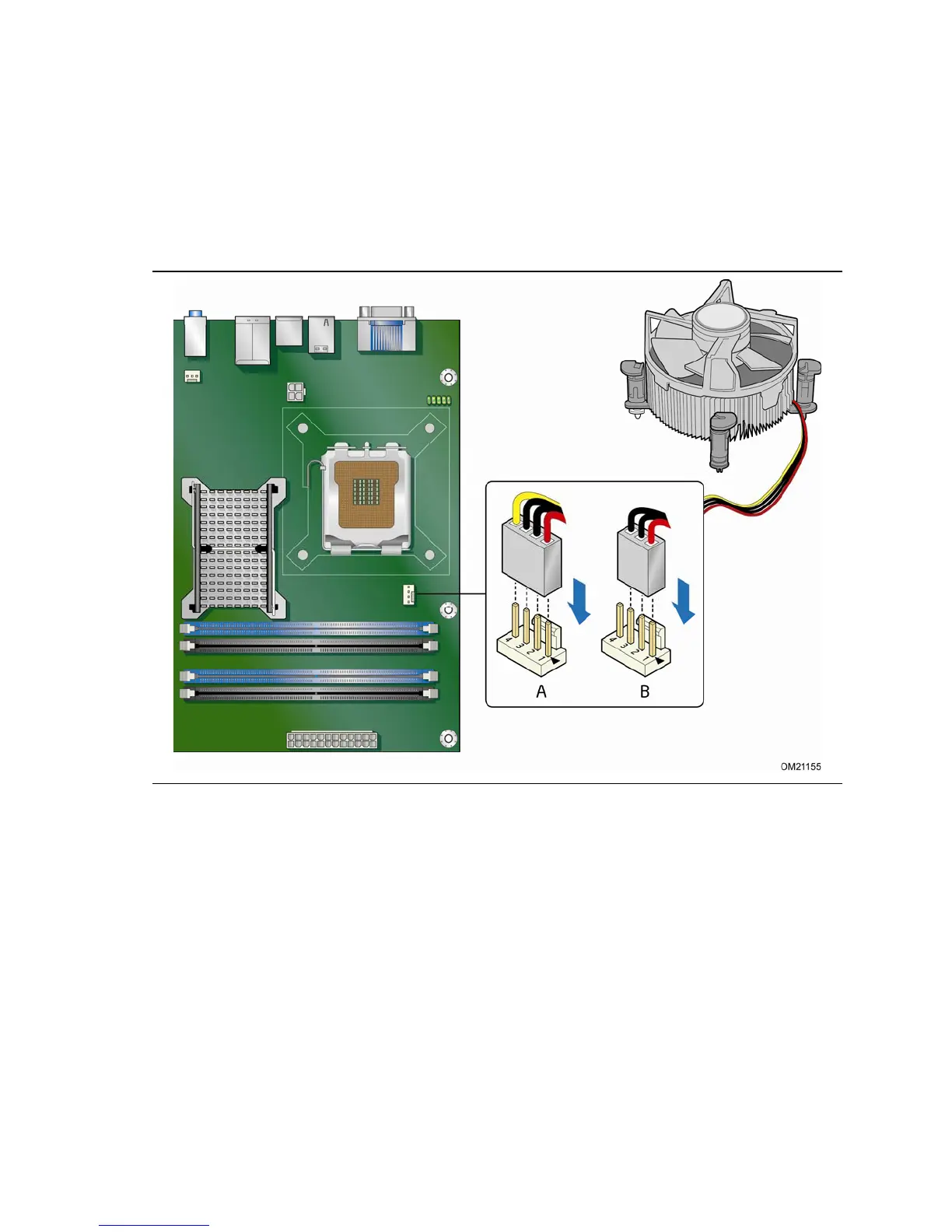

Figure 13. Connecting the Processor Fan Heat Sink Cable
Removing the Processor
For instructions on how to remove the processor fan heat sink and processor, refer to
the processor installation manual.
