Intel Braswell Series User Manual

10

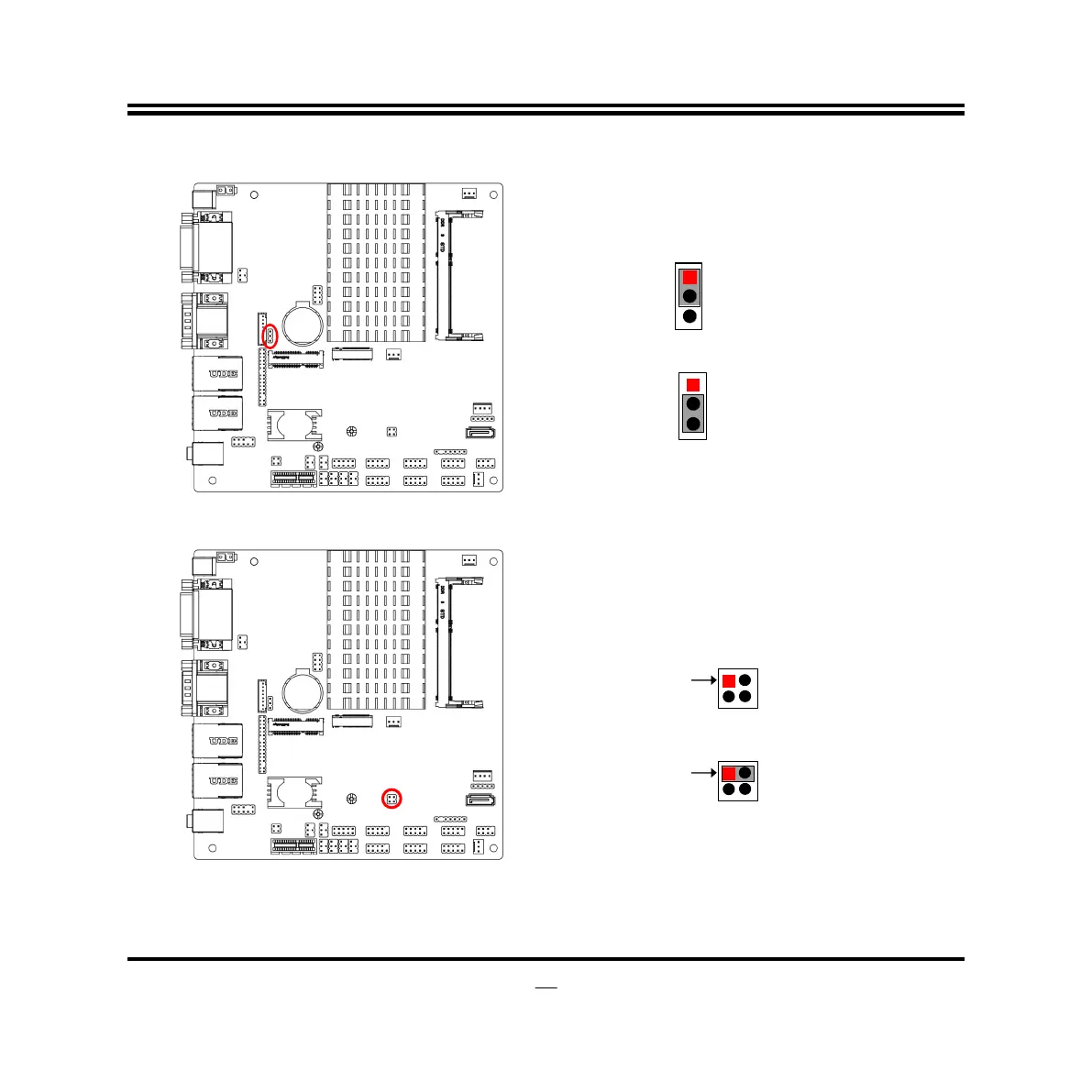

JPLED (3-pin): INVERTER Back Light VCC 5V/12V Select
(2.54 pitch)
2-3 Close: INVERTER Back Light 12V Selected.
JPLED → INVERTER Back Light VCC
1-2 Close: INVERTER Back Light 5V Selected(Default);
1
3
1
3
Pin (1-2) of JAT_COPEN (4-pin): ATX Mode/AT Mode Select
(2.54 pitch)
3
Pin 1
2
4
1-2 Open: ATX Mode Selected(Default);
;
Pin 1
3
2
4
1-2 Closed: AT Mode Selected.
.
Pin (1&2) of JAT_COPEN → ATX/AT Mode Select
*ATX Mode Selected: Press power button to power on after power input ready;
AT Mode Selected: Directly power on as power input ready.
