Intel D101GGC User Manual

Installing and Replacing Desktop Board Components
29

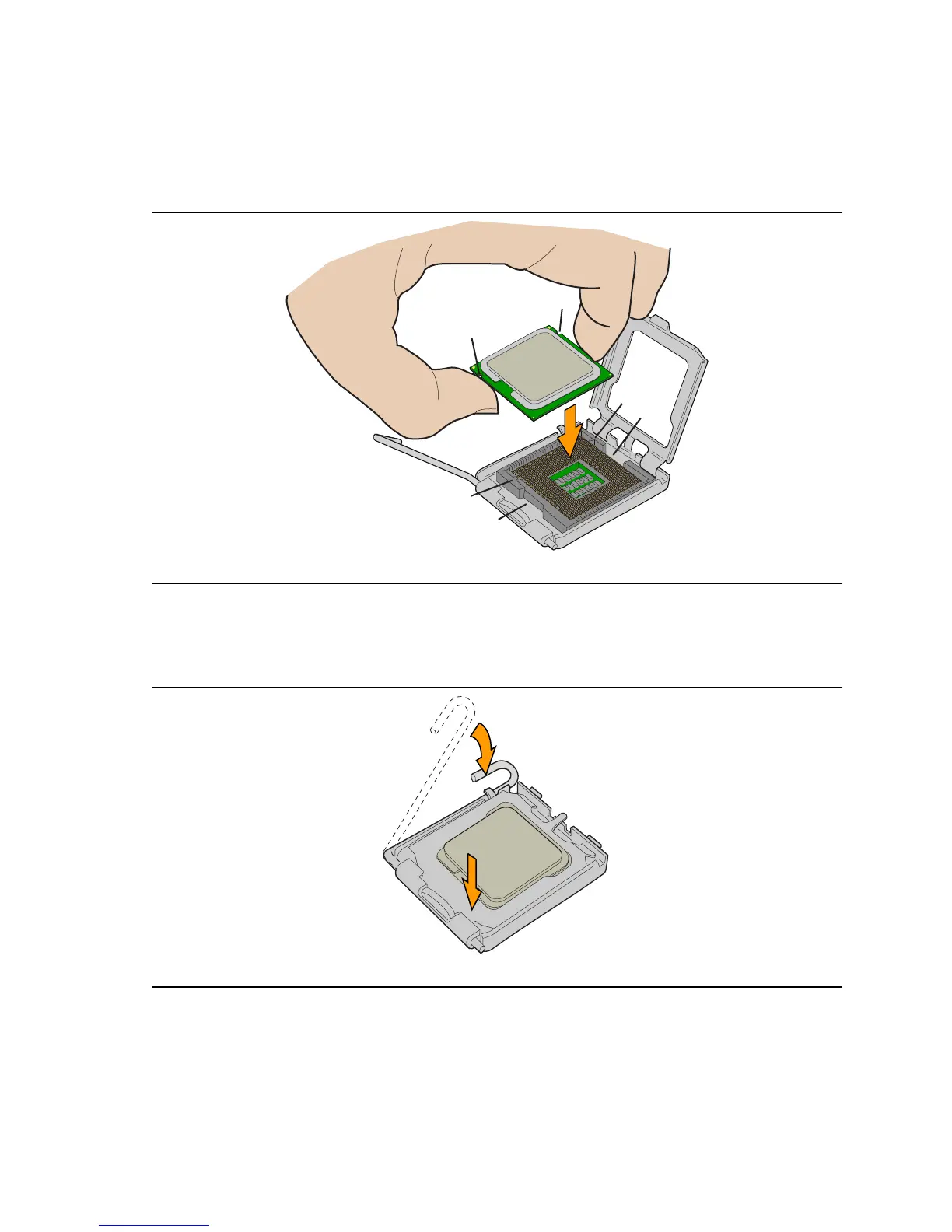

6. Hold the processor with your thumb and index fingers oriented as shown in Figure 10. Make
sure fingers align to the socket cutouts (see
Figure 10, F). Align notches (see Figure 10, G)
with the socket see (
Figure 10, H). Lower the processor straight down without tilting or sliding
the processor in the socket.
OM17214
G
G
F
H
F
H
Figure 10. Install Processor
7. While pressing down on the load plate (Figure 11, I), close and engage the socket lever
(
Figure 11, J).
OM17215
I
J
Figure 11. Close the Load Plate

Intel D101GGC Specifications

General

Form Factor	Micro ATX
Chipset	ATI Radeon Xpress 200
Socket	LGA 775
Memory Type	DDR
Memory Slots	4
Expansion Slots	1 x PCIe x16, 2 x PCI
Storage Interface	SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel
