Intel D101GGC User Manual

Installing and Replacing Desktop Board Components
31
Installing and Removing Memory
NOTE
To be fully compliant with all applicable Intel SDRAM memory specifications, the boards require
DIMMs that support the Serial Presence Detect (SPD) data structure. You can access the PC
Serial Presence Detect Specification at:
http://www.intel.com/technology/memory/ddr/specs/dda18c32_64_128x72ag_a.pdf
The desktop board has two 184-pin DIMM sockets arranged as DIMM 0 (blue) and DIMM 1
(black).
Installing DIMMs
NOTE
Install memory in the DIMM sockets prior to installing the PCI Express video card to avoid
interference with the memory retention mechanism.

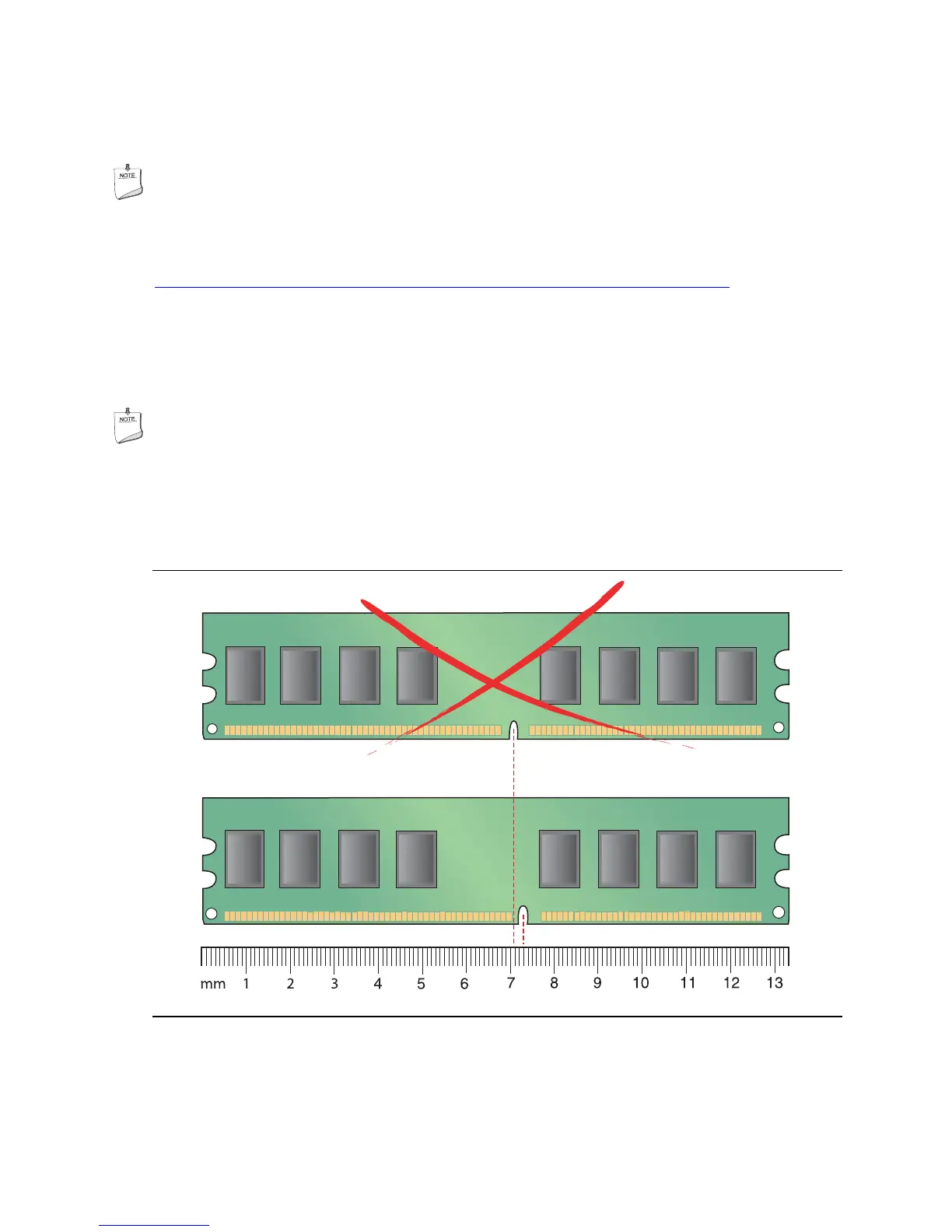

To make sure you have the correct DIMM, place it on the illustration in Figure 13 showing the
DDR DIMM. All the notches should match the DDR DIMM.
OM18224
DDR2
DDR
Figure 13. Use DDR DIMMs

Intel D101GGC Specifications

General

Form Factor	Micro ATX
Chipset	ATI Radeon Xpress 200
Socket	LGA 775
Memory Type	DDR
Memory Slots	4
Expansion Slots	1 x PCIe x16, 2 x PCI
Storage Interface	SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel
