Intel Desktop Board D101GGC Product Guide
40
Setting Up the Flexible 6-Channel Audio with Jack
Re-tasking (Optional)
After installing the Realtek audio driver, the multi-channel audio feature can be enabled.
OM18218
A
B
C
Item Description
A Rear left/right out or Line In
B Front left/right out or Line Out
C Center/LFE (Subwoofer) or Mic In

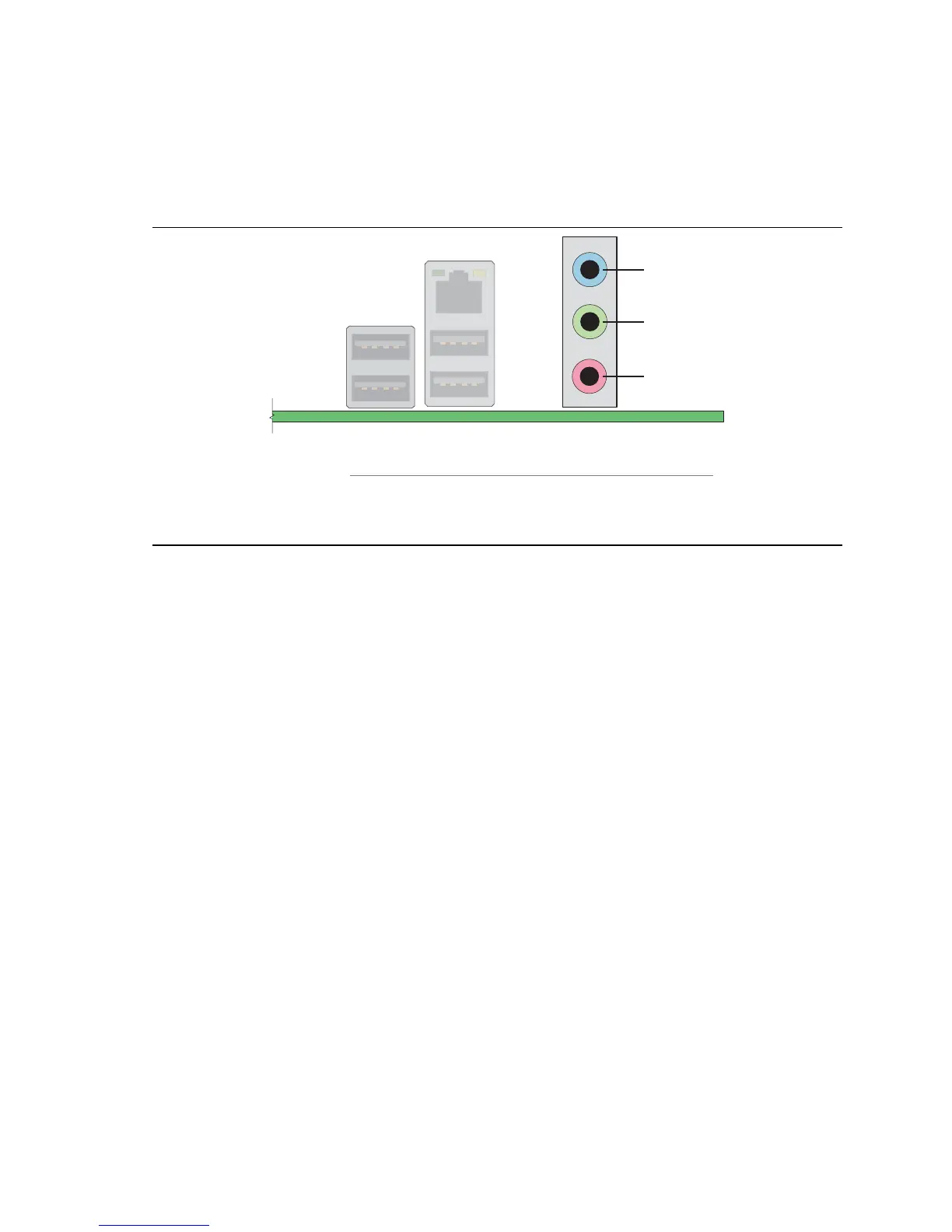

Figure 19. Back Panel Audio Connectors for Flexible 6-Channel Audio System
Multi-Channel Analog Audio
Connect two speakers to the front left/right out (B) and two speakers to the rear left/right out (A)
for both 4- and 6-channel audio configurations. For 6-channel audio, connect two additional
speakers to the center LFE out (C).

Intel D101GGC Specifications

General

Form Factor	Micro ATX
Chipset	ATI Radeon Xpress 200
Socket	LGA 775
Memory Type	DDR
Memory Slots	4
Expansion Slots	1 x PCIe x16, 2 x PCI
Storage Interface	SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel
