Intel D101GGC User Manual

Installing and Replacing Desktop Board Components
41
Connecting Fan and Power Cables
Connecting Fan Cables
Figure 20 shows the location of the fan headers. Connect the processor’s fan heat sink cable to the
4-pin processor fan header on the board. Connect chassis fan cables to the 3-pin fan headers.
OM18219
2
1
3
2
1
3
2
1
3
2
1
3
3
1
4
2
1
4
2
3
1
4
2

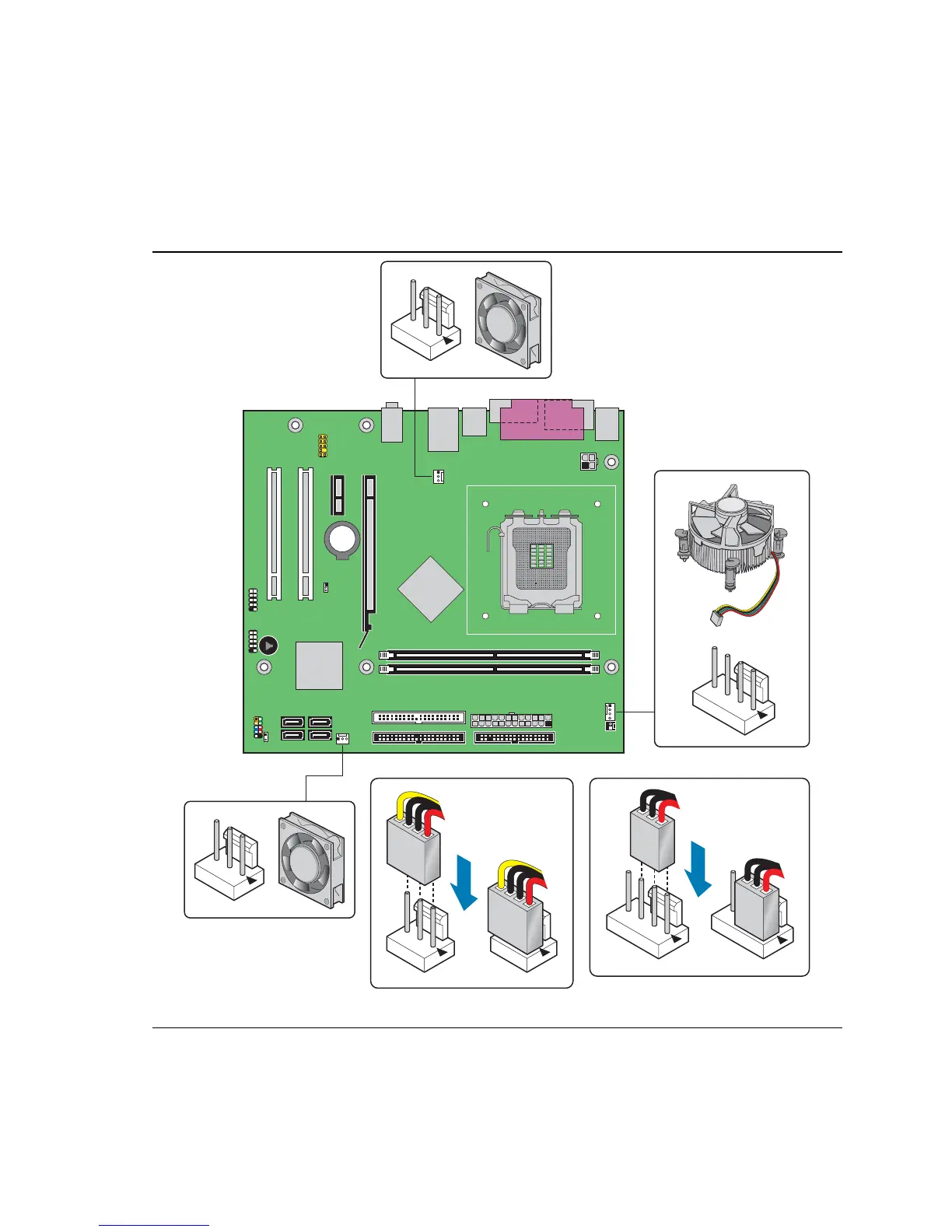

Figure 20. Location of Fan Headers

Intel D101GGC Specifications

General

Form Factor	Micro ATX
Chipset	ATI Radeon Xpress 200
Socket	LGA 775
Memory Type	DDR
Memory Slots	4
Expansion Slots	1 x PCIe x16, 2 x PCI
Storage Interface	SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel
