Intel Desktop Board D101GGC Product Guide
42
Connecting Power Cables
CAUTION
Failure to use the appropriate power supply and/or not connecting the 12 V (2x2) power connector
to the desktop board may result in damage to the board or the system may not function properly.
See Table 3 on page 13 for power supply requirements. Figure 21 shows the location of the power
connectors.
OM18220
2 X 12
2 X 2

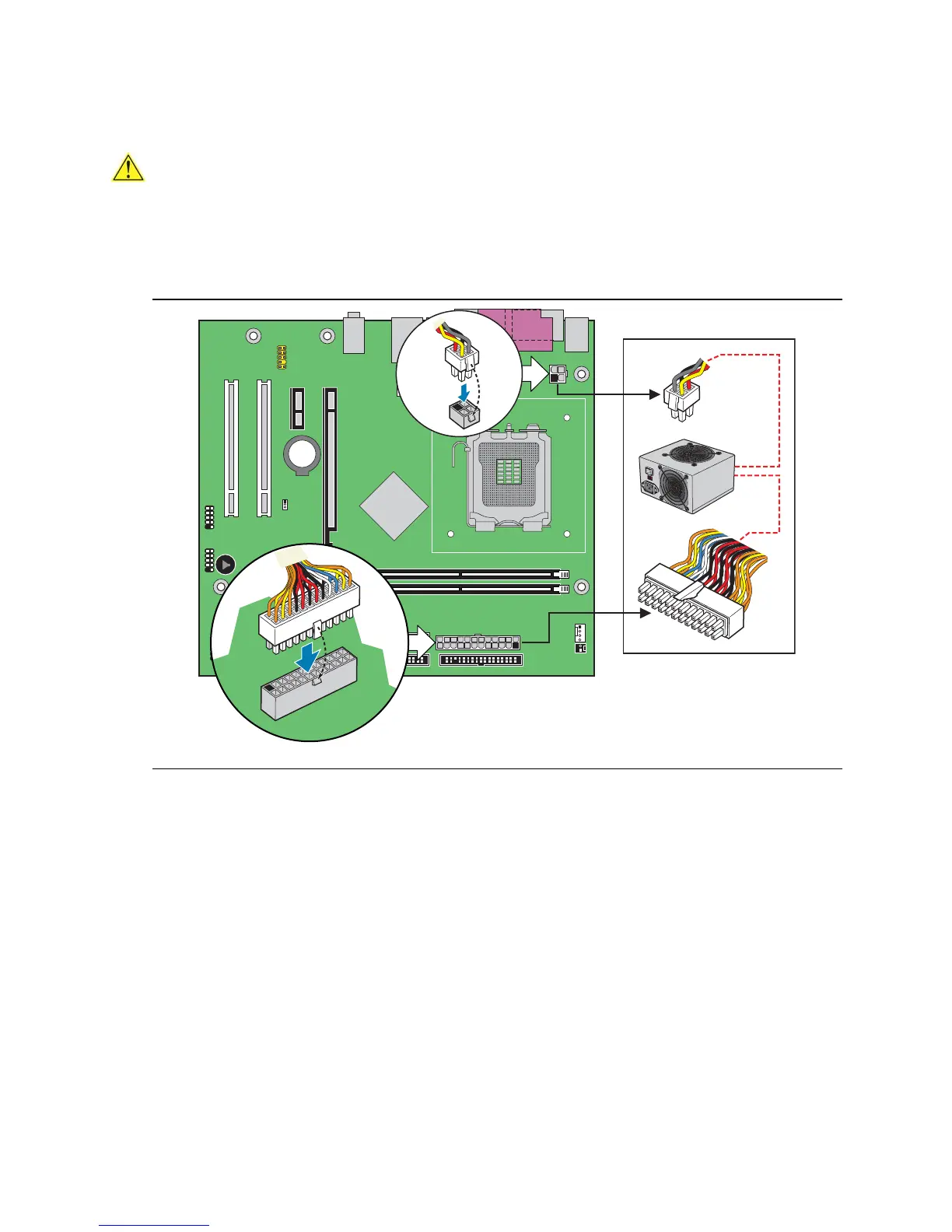

Figure 21. Connecting 2x12 Power Supply Cables
1. Observe the precautions in "Before You Begin" on page 23.
2. Connect the 12 V processor core voltage power supply cable to the 2x2 connector.
3. Connect the main power supply cable to the 2x12 connector.
