Intel Desktop Board D101GGC Product Guide
34
Installing and Removing a PCI Express* x16 Card
CAUTION
When installing a PCI Express x16 card on the desktop board, ensure that it is fully seated in the
PCI Express x16 connector before you power on the system. If the card is not fully seated in the
PCI Express connector, an electrical short may result across the PCI Express connector pins.
Depending on the over-current protection of the power supply, certain board components and/or
traces may be damaged.
Installing a PCI Express x16 Card
1. Observe the precautions in "Before You Begin" on page 23.
2. Place the card in the PCI Express x16 connector and press down on the card until it is
completely seated in the connector and the card retention notch snaps into place around the RM
pin (
Figure 15, A).
3. Secure the card’s metal bracket to the chassis back panel with a screw (
Figure 15, B).
OM18214
A
B
C

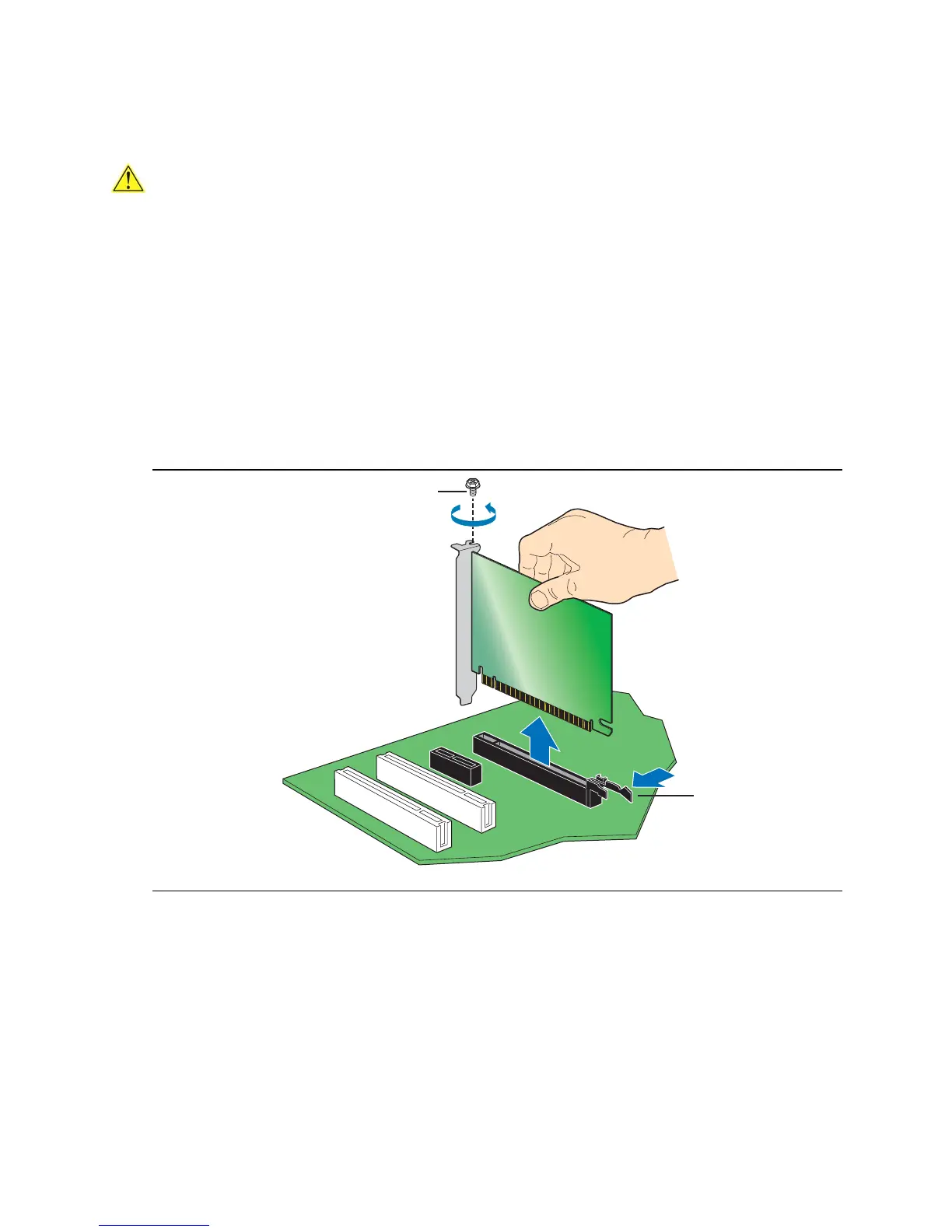

Figure 15. Removing a PCI Express x16 Card
Removing the PCI Express x16 Card
Follow these instructions to remove the PCI Express x16 card from the RM:
1. Observe the precautions in "
Before You Begin" on page 23.
2. Remove the screw that secures the card’s metal bracket to the chassis back panel.
3. Push back on the RM lever until the retention pin completely clears the notch in the card.
4. Pull the card straight up.

Intel D101GGC Specifications

General

Form Factor	Micro ATX
Chipset	ATI Radeon Xpress 200
Socket	LGA 775
Memory Type	DDR
Memory Slots	4
Expansion Slots	1 x PCIe x16, 2 x PCI
Storage Interface	SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel
