Installing the Processor
To install a processor, follow these instructions:
1. Observe the precautions in “Before You Begin” (see page 23).
2. Locate the processor socket and raise the socket handle completely (see Figure 11).
PG
A370
OM07801

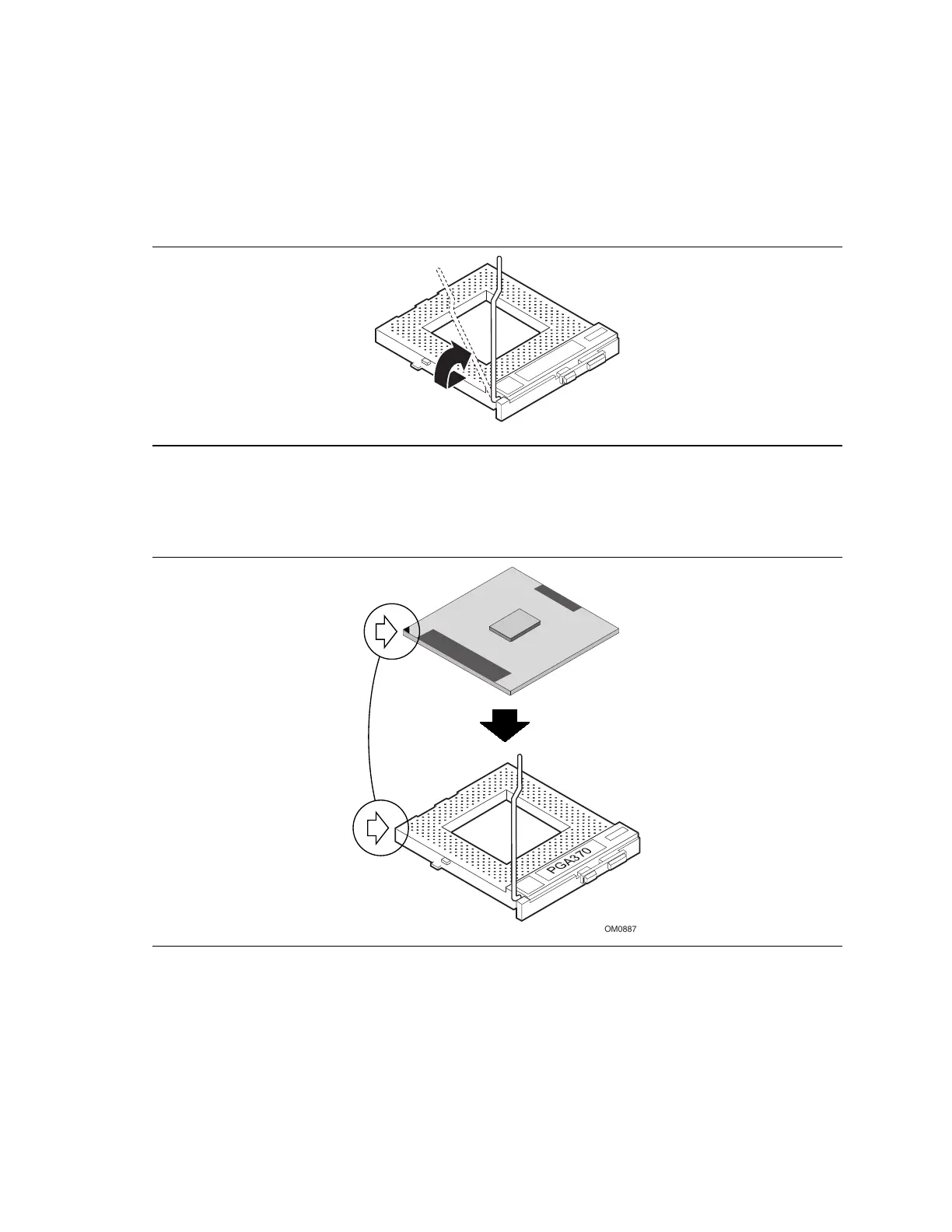

Figure 11. Raising the Socket Handle
3. Aligning the pins of the processor with the socket, insert the processor into the socket
(see Figure 12).
PGA370
OM08879
Figure 12. Inserting the Processor into the Socket
