Intel D815EEA Product Guide

Intel Desktop Board D815EEA Product Guide
66
Back Panel Connectors

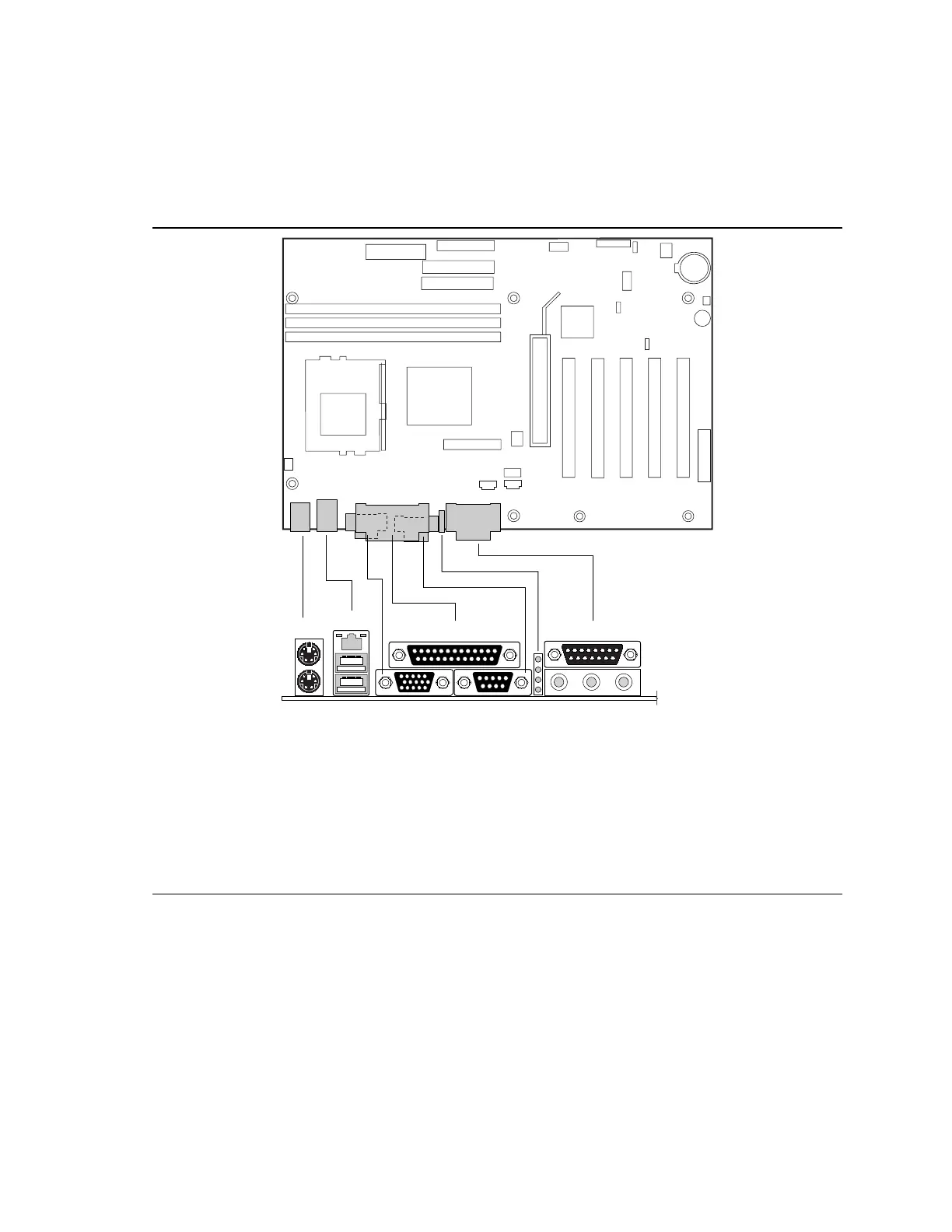

Figure 21 shows the back panel connectors on the desktop board. The back panel connectors are
color-coded in compliance with PC 99 recommendations. The figure legend below lists the colors
used.
OM10105
BE
I
JLKG
F
C
D
A
H
A PS/2 mouse, green G Serial port A, teal
B PS/2 keyboard, purple H Diagnostic LEDs
C LAN connector with LED display
(optional)
I MIDI/Game port, gold
D USB port 0, upper; USB port 1, lower J Audio line out, green
E VGA port K Audio line in, blue
F Parallel port, burgundy L Mic in, red
Figure 21. Back Panel Connectors
✏
NOTE
The line out connector, located on the back panel, is designed to power either headphones or
amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.
