Desktop Board Features
9
Components

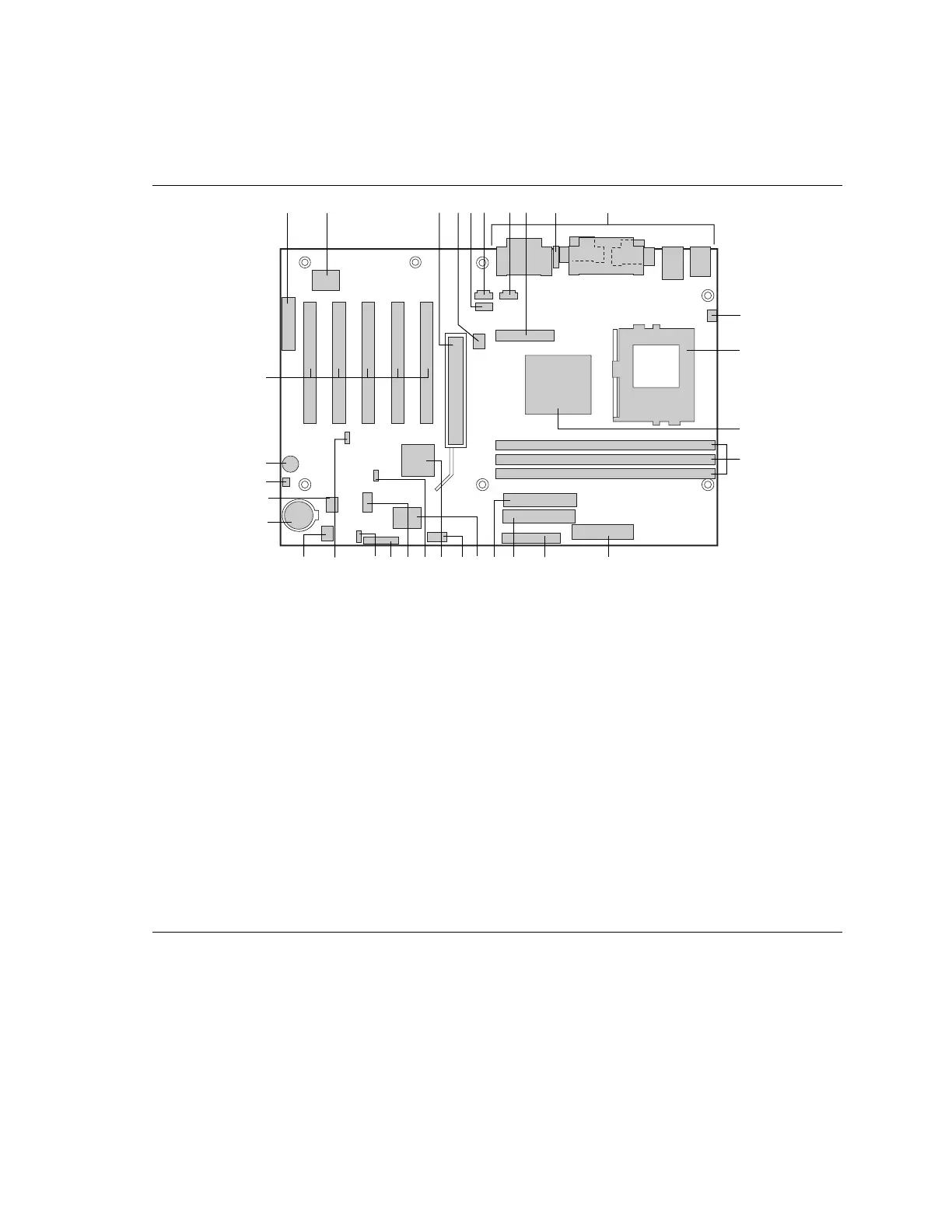

Figure 1 shows the major components on the desktop board.
OM10101
N
AJ
CDE F G H
I
K
L
M
OPQRTUVWXYZ
AA
BB
DD
EE
FF
B
S
CC
A CNR connector (optional) P Diskette drive connector
B Creative Labs ES1373 digital controller
(optional)
Q
R
Primary IDE connector
Secondary IDE connector
C AGP Universal connector S SMSC LPC47M102 I/O controller
D Chassis fan connector (Fan 2) T Serial port B connector (COM 2)
E Legacy CD-ROM connector U Intel
®
82801BA I/O Controller Hub (ICH2)
F ATAPI-style CD-ROM connector V BIOS configuration jumper block
G Auxiliary line in connector W Front panel USB connector
H Digital Video Output (DVO) connector X Front panel switch/LED connector
I Diagnostic LEDs Y Alternate front panel power LED connector
J Back panel connectors Z Wake on LAN technology connector
K Processor fan connector (Fan 3) AA Chassis fan connector (Fan 1)
L 370-pin processor socket BB Battery
M Intel
®
82815E Graphics Memory Controller
Hub (GMCH)
CC
DD
Intel 82802AB Firmware Hub (FWH)
SCSI hard drive activity LED connector
N DIMM sockets (3) EE Speaker
O Main power connector FF PCI slots
Figure 1. Desktop Board Components
✏
NOTE
Components labeled optional do not come on all D815EEA boards.
