Installing and Replacing Desktop Board Components
33
4.

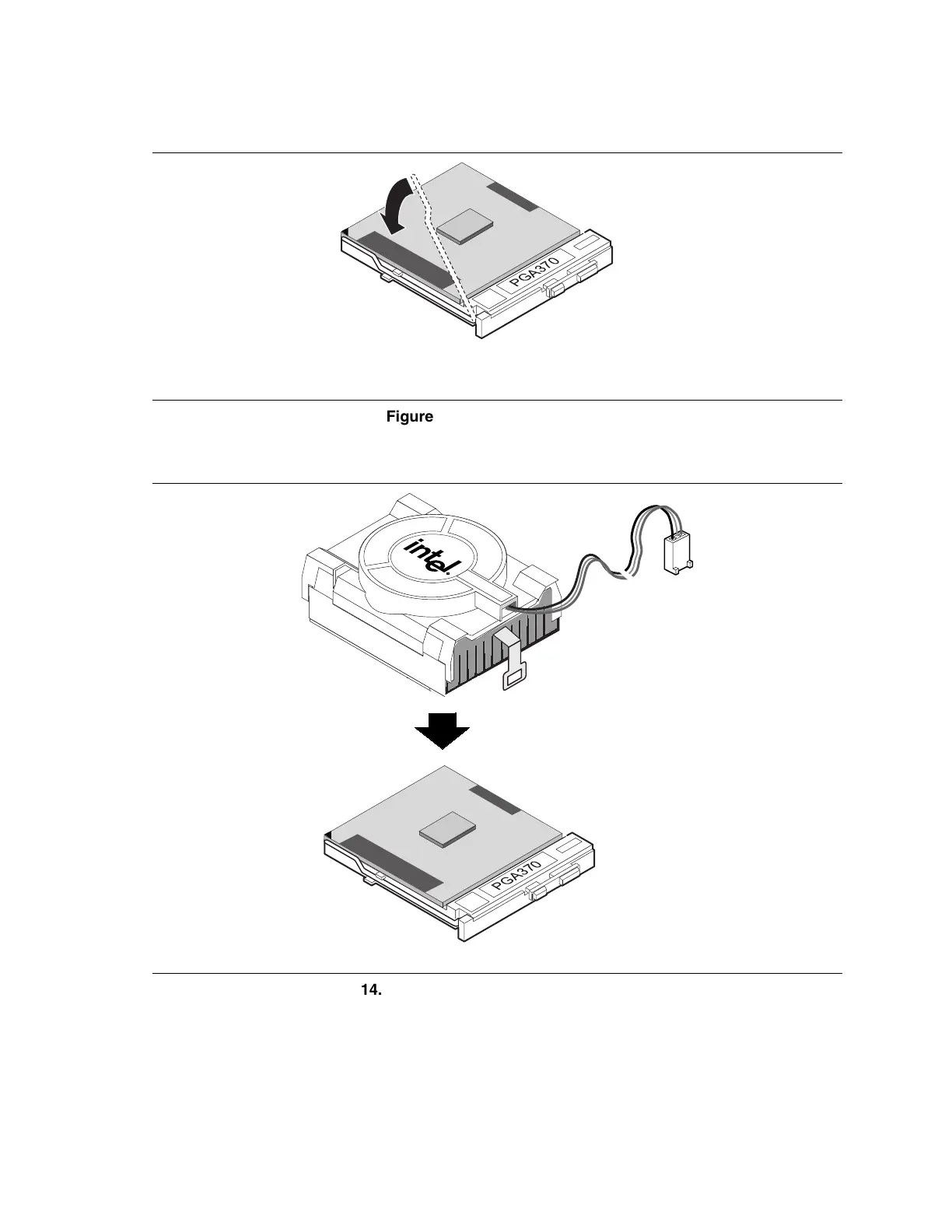

Close the handle completely (see Figure 13).
OM08880
PGA370
Figure 13. Closing the
Handle
5.
Place the fan heatsink on top of the processor (see Figure 14).
OM09415
PGA370
Figure 14. Att
aching the Heat
sink to th
e Processor
32
