Intel Desktop Board D850GB Technical Product Specification
54
2.8.2.2 Audio
Connectors

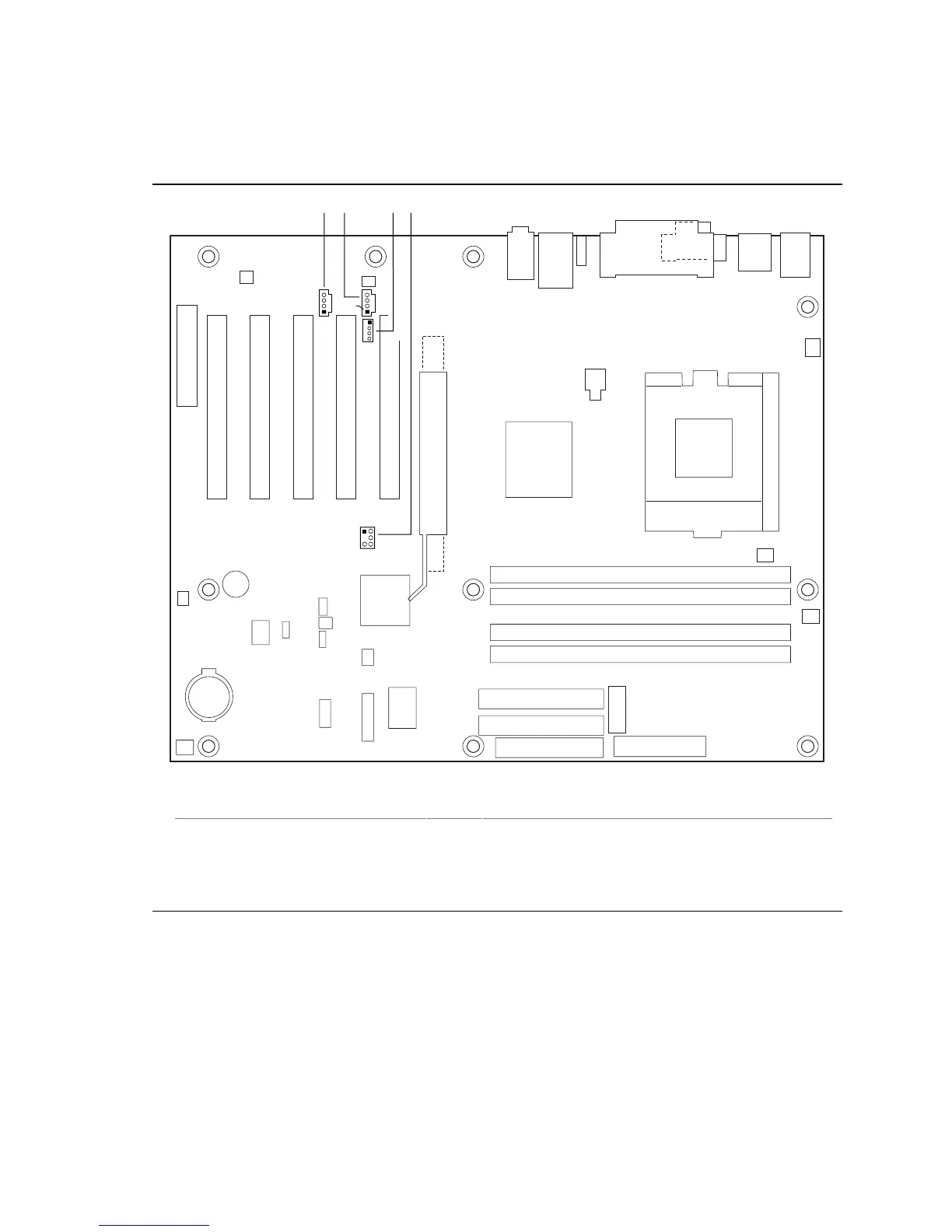

Figure 9 shows the location of the audio connectors.
OM10444
C
1
1
1
6
5
1
A
D
B
Item
Description
Color
Reference Designator
For more information see:
A
Auxiliary line in, ATAPI style
White
J2C1
Table 25
B
A
TAPI CD-ROM
Black
J2D1
Table 26
C
CD-ROM
, Legacy s
tyle, 2 mm
White
J2D2
Table 27
D
PC/PCI
N/A
J6D1
Table 28
Figure 9. Audio Connectors
