2.10 Mechanical Considerations
2.10.1 Form Factor
The D850GB board is designed to fit into an ATX-form-factor chassis. Figure 14 illustrates the
mechanical form factor for the D850GB board. Dimensions are given in inches [millimeters]. The
outer dimensions are 9.60 inches by 12.00 inches [243.84 millimeters by 304.80 millimeters].
Location of the I/O connectors and mounting holes are in compliance with the ATX specification
(see Section 1.3).
OM10449
6.10[154.94]
3.10[78.74]
0.65[16.51]
4.90
[124.46]
11.35[288.29]
0.00
6.50[165.10]
11.10[281.94]
5.20[132.08]
2.850[72.39]
3.10
[78.74]
0.00

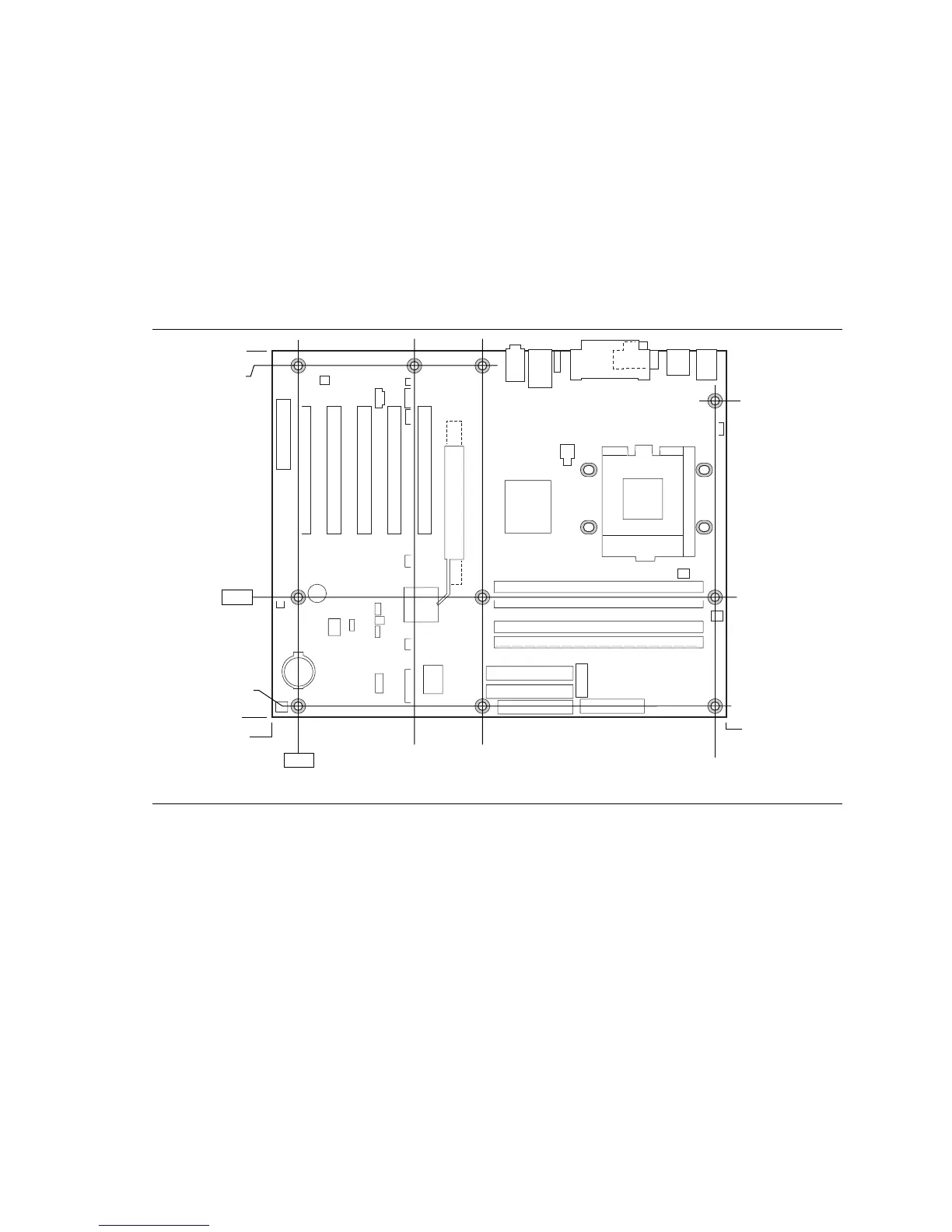

Figure 14. D850GB Board Dimensions
✏
NOTE
There may be mechanical interference with installed RDRAM modules in some combinations of
ATX chassis and peripherals, such as CD-ROM drives.
