Intel Desktop Board D955XBK Product Guide
40
Connecting the Serial ATA Cable
The SATA cable (4-conductor) supports the Serial ATA protocol and connects a single drive to the
desktop board. Either end of the cable can be connected to the SATA drive or the connector on the
board.
For correct cable function:
1. Observe the precaution in "Before You Begin" on page 23.
2. Attach the locking cable end to the connector (Figure 21, A) on the board.
3. Attach the cable end without the lock to the drive (Figure 21, B).
OM17599
82801
A
B

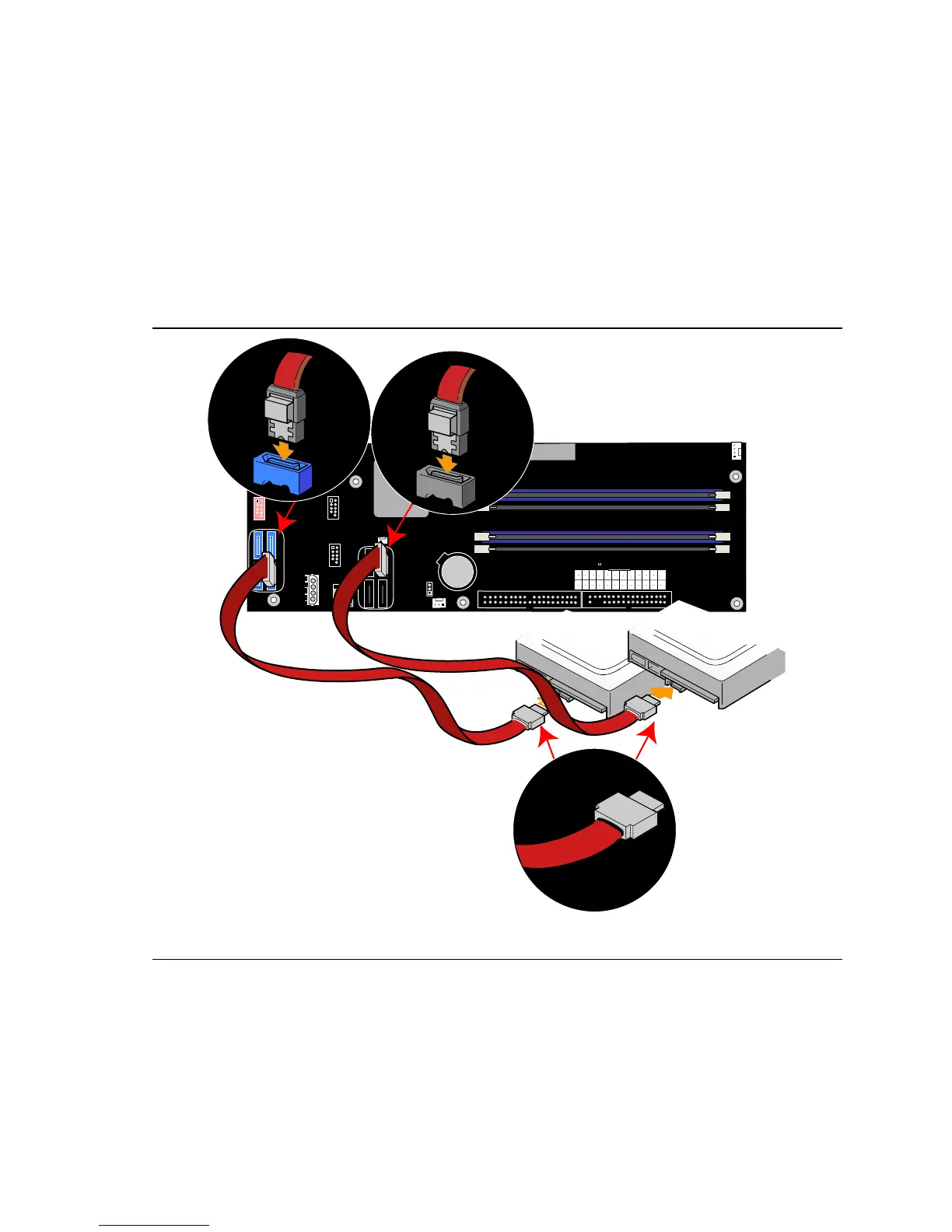

Figure 21. Connecting Serial ATA Cables
