Installing and Replacing Desktop Board Components
47
Connecting the Auxiliary Power Output Connector
Figure 26 shows the location of the auxiliary power output connector.
Channel A
Channel B
Intel
82801
(ICH7)
OM17602

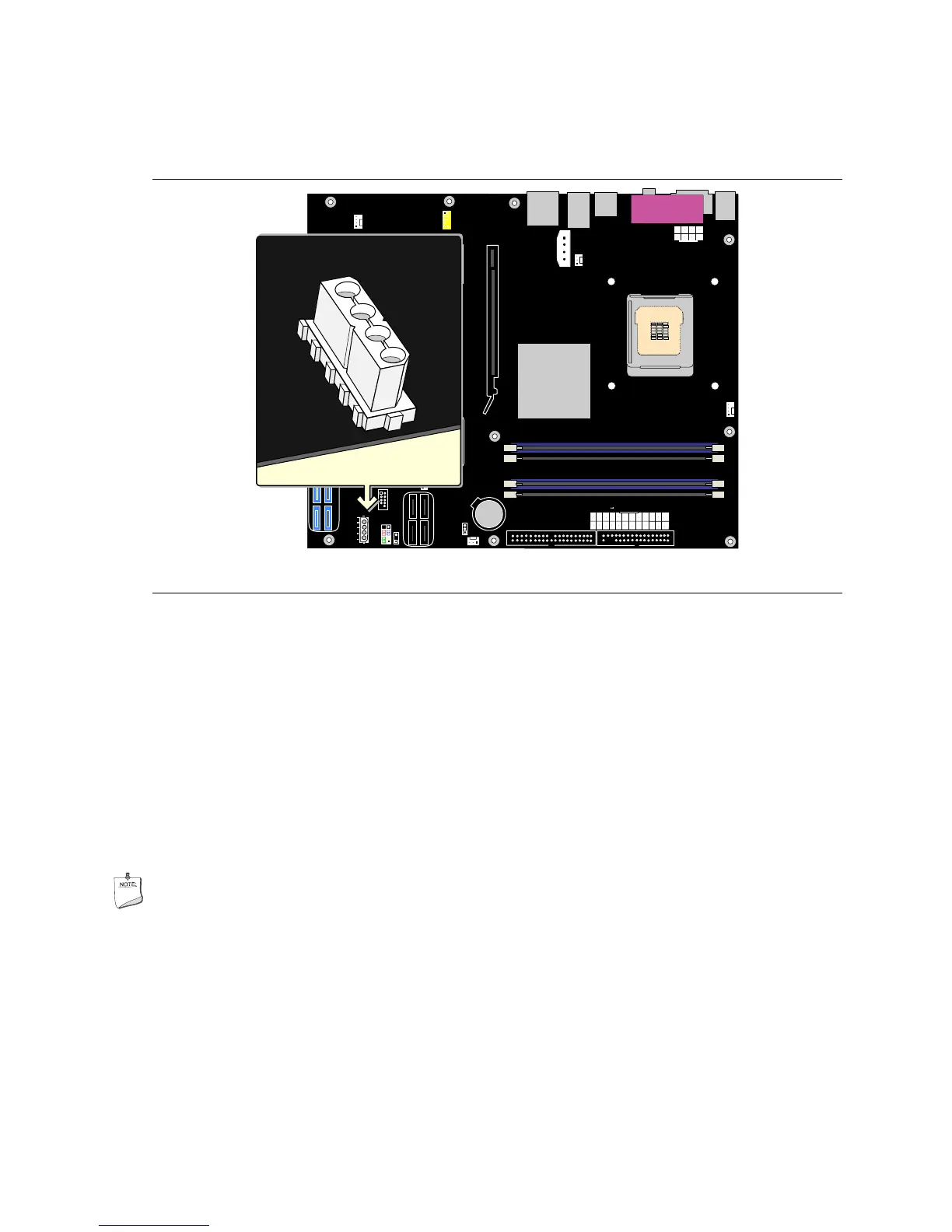

Figure 26. Auxiliary Power Output Connector
The D955XBK board includes a male 1x4 power connector that can be used to provide power
for internal chassis lighting or additional fans using less that 1.5 A. The 1x4 connector is off by
default. You can turn on/off the connector from within the BIOS Setup program under
Advanced Peripheral Configuration Auxiliary Power.
Use of this connector requires an ATX12V power supply with a 24-pin (2x12) main power cable.
If a power supply with a 20-pin (2x10) main power cable is used, the auxiliary power output
connector may not function. The connector circuitry includes overcurrent protection components
that limit the current draw to a maximum of 1.5 A.
NOTE
Do not use a Y-adapter, power splitter, or SATA power adapter to attach storage devices (such as
hard disk drives or CD/DVD drives) to this connector. This connector will NOT provide adequate
power for storage devices.
