Intel Desktop Board D955XBK Product Guide
46
Connecting Fans
Connecting Fans and Chassis Intrusion
See Figure 25 for fan and chassis intrusion header
locations. Connect the processor’s fan heat sink
cable to the 4-pin processor fan header on the board
. Connect chassis fan cables to the board fan
headers and the chassis fan cable to its respective header.
Channel A
Channel B
A
1
3
1
2
4
3
1
2
4
AB
3
1
2
3
1
2
B
A
OM17601

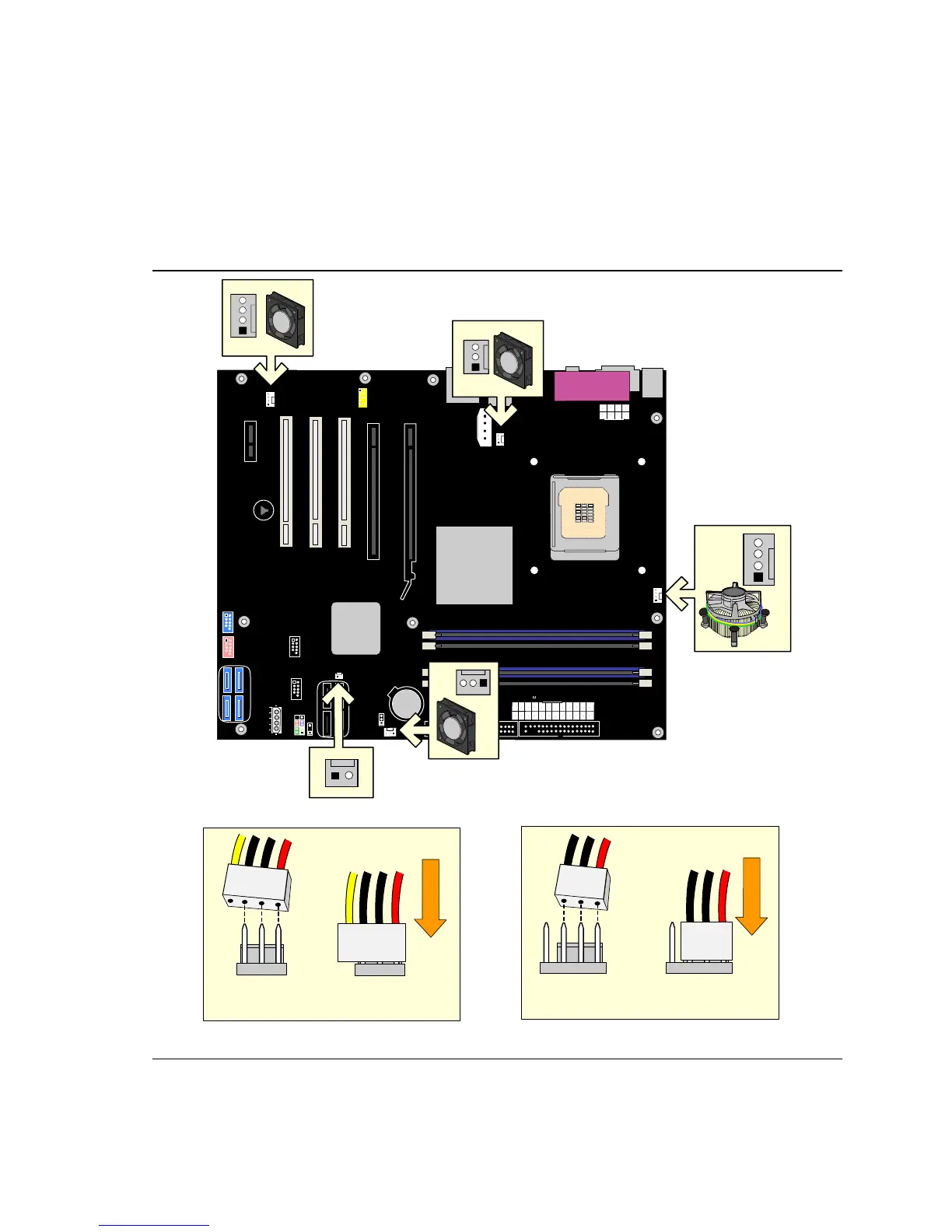

Figure 25. Location of Fan Headers
45
47
