Installing and Replacing Desktop Board Components
47
Connecting to Internal Headers
Before connecting cables to the internal
headers, observe
the precautions in “
Before
You Begin” on page
29.
Figure 22 shows the location
of the internal
headers.

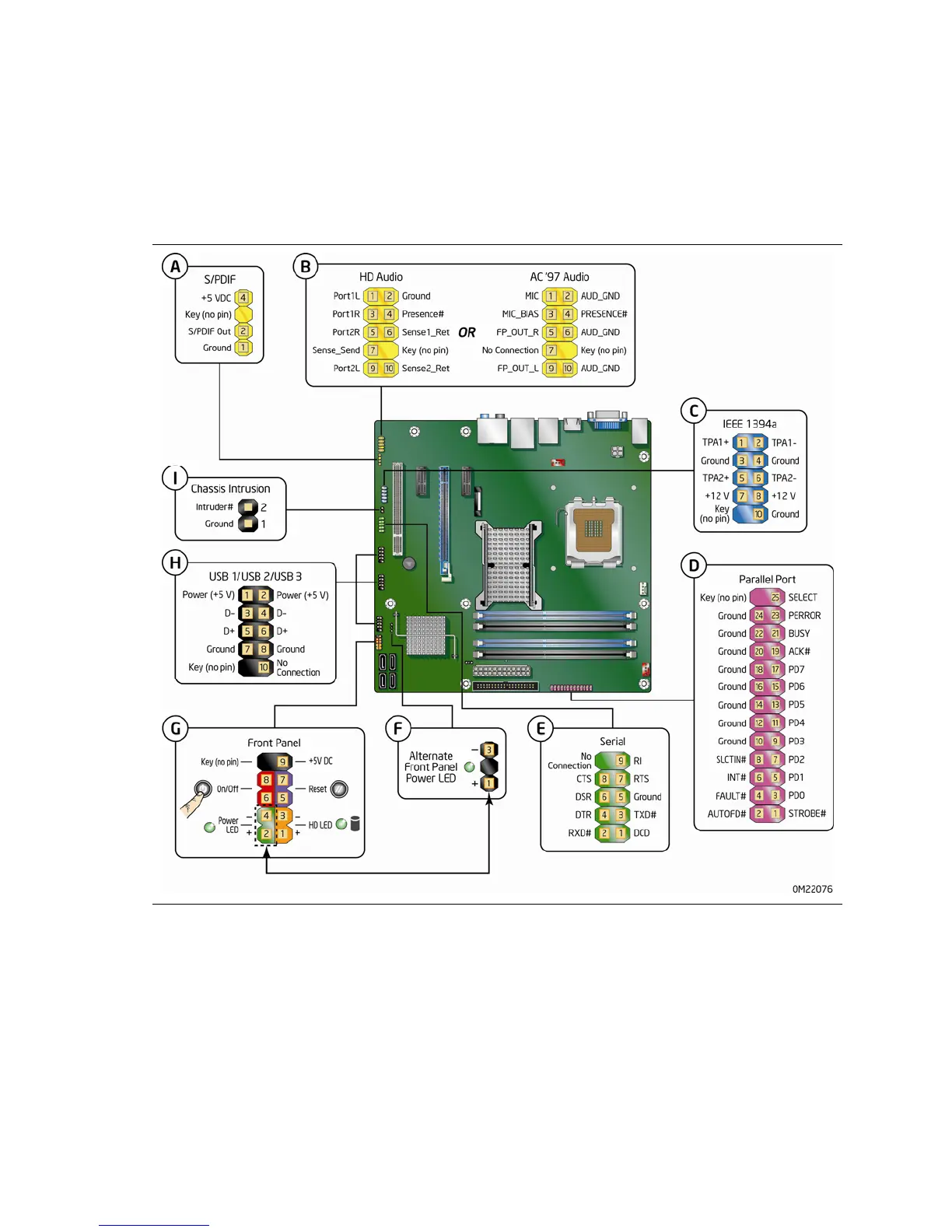

Figure 22. Internal Headers
