Installing and Replacing Desktop Board Components
53
Connecting Chassis Fan and Power Supply
Cables
Chassis Fan Cables
Connect chassis fan cables to the chassis fan headers on the Desktop Board.
Figure 24 shows the location of the chassis fan headers.

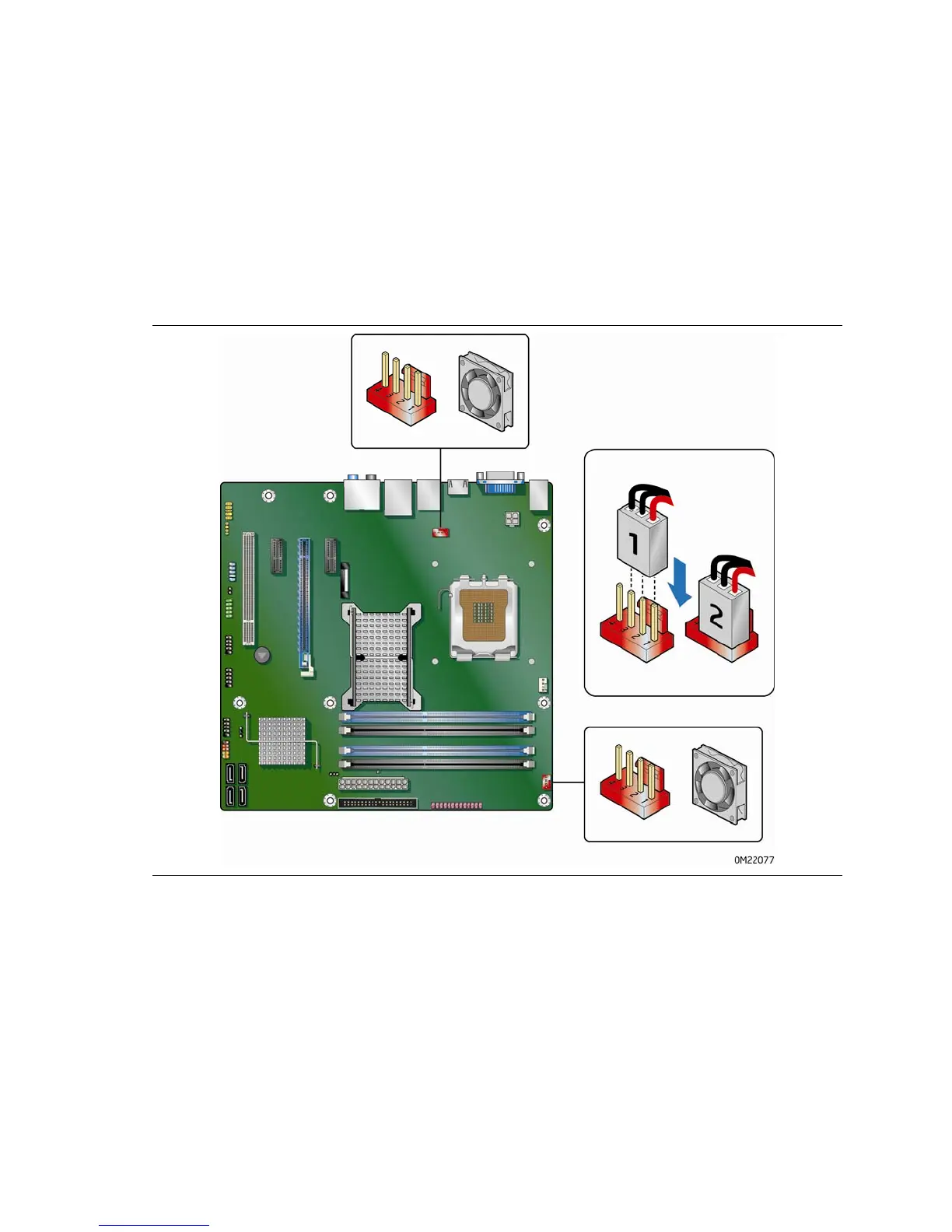

Figure 24. Location of the Chassis Fan Headers
