1.14.4 Thermal Monitoring
Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Rear chassis fan header
B Thermal diode, located on processor die
C Processor fan header
D Front chassis fan header

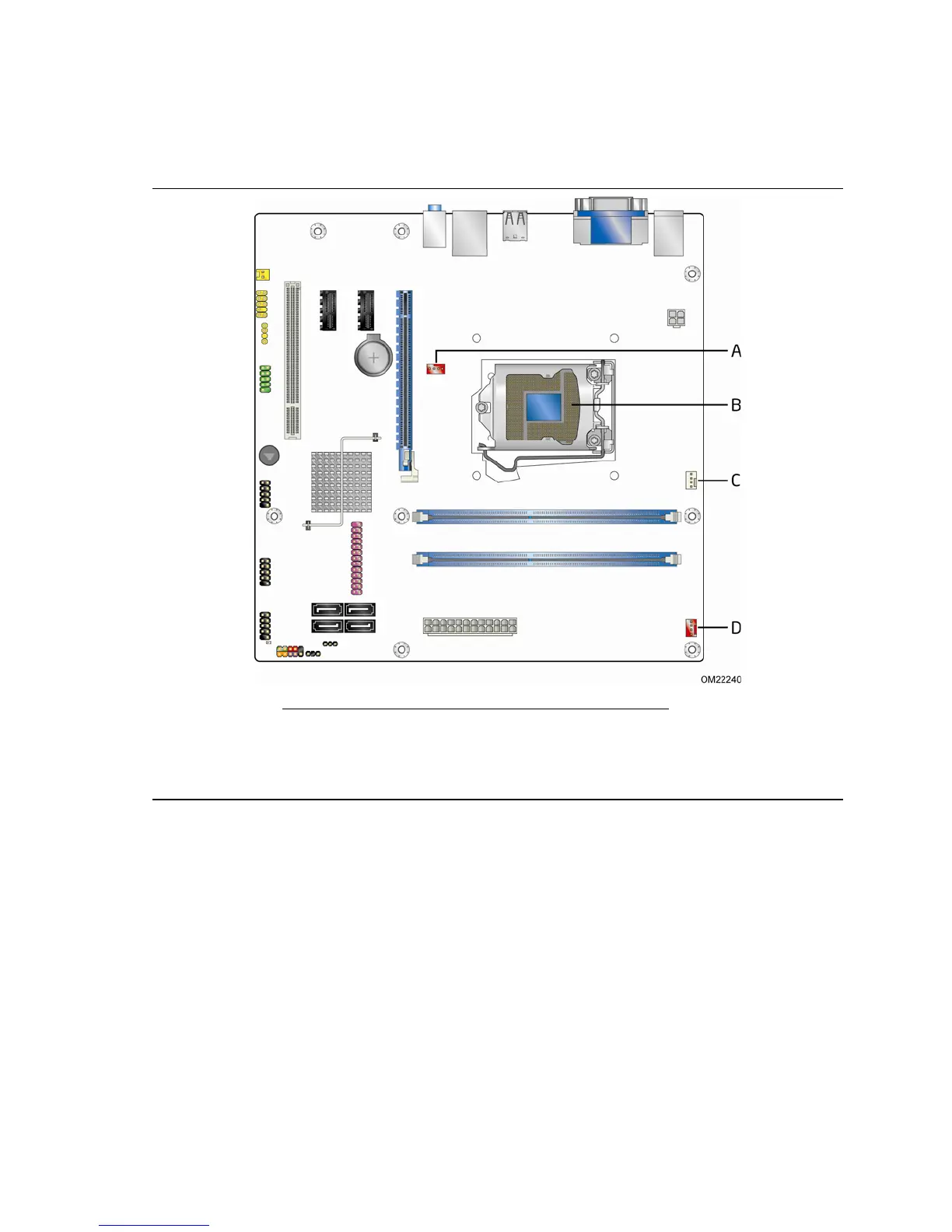

Figure 6. Thermal Sensors and Fan Headers
