Intel Desktop Board DH55PJ Technical Product Specification
38
2.2.1 Back Panel Connectors
Figure 9 shows the location of the back panel connectors for the board.
Item Description
A PS/2 keyboard/mouse port
B USB ports
C VGA port
D DVI-D connector
E USB ports
F LAN
G USB ports
H Audio line in
I Audio line out
J Mic in

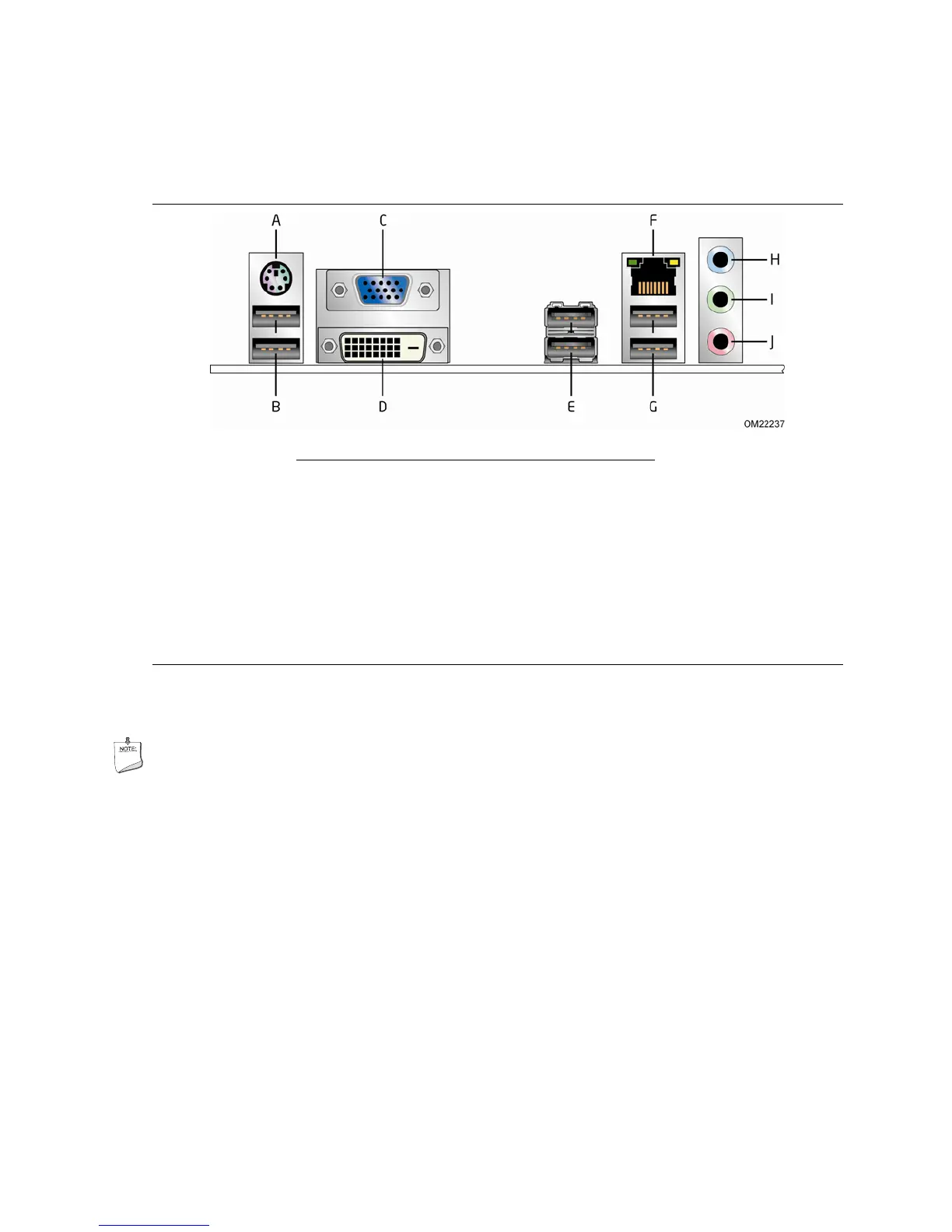

Figure 9. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.

Intel DH55PJ Specifications

General

Form Factor	Micro ATX
Socket	LGA 1156
Memory Type	DDR3
Maximum Memory	8 GB
Memory Slots	2
PCI Express x16	1
PCI Express x1	2
PCI Slots	1
Chipset	Intel H55 Express
USB Ports	12
Video Outputs	VGA
SATA Ports	6
