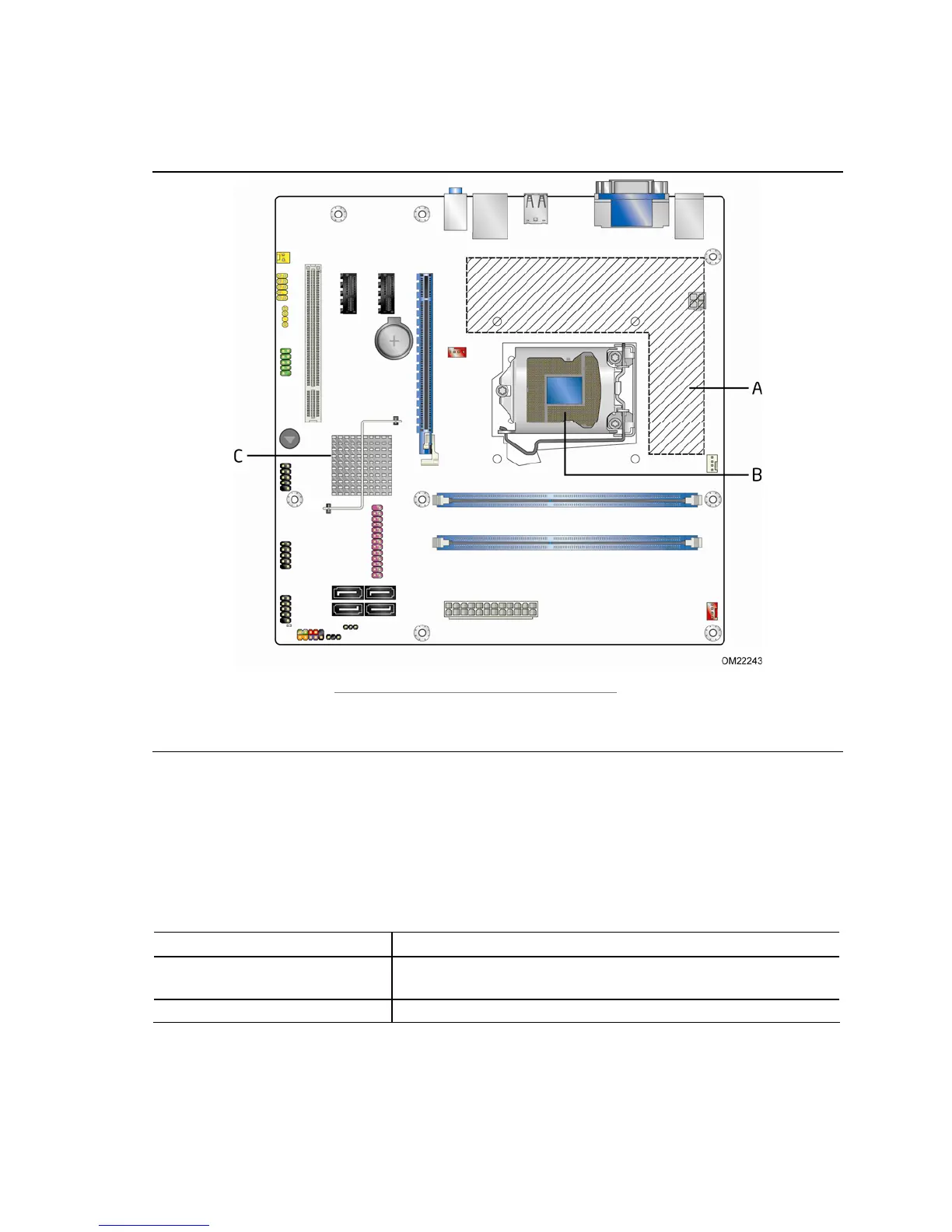

Figure 15 shows the locations of the localized high temperature zones.
Item Description
A Processor voltage regulator area
B Processor
C Intel H55 Express Chipset
Figure 15. Localized High Temperature Zones
Table 29 provides maximum case temperatures for the components that are sensitive
to thermal changes. The operating temperature, current load, or operating frequency
could affect case temperatures. Maximum case temperatures are important when
considering proper airflow to cool the board.
Table 29. Thermal Considerations for Components
Component Maximum Case Temperature
Processor For processor case temperature, see processor datasheets and
processor specification updates
Intel H55 Express Chipset 111
o
C

Intel DH55PJ Specifications

General

Form Factor	Micro ATX
Socket	LGA 1156
Memory Type	DDR3
Maximum Memory	8 GB
Memory Slots	2
PCI Express x16	1
PCI Express x1	2
PCI Slots	1
Chipset	Intel H55 Express
USB Ports	12
Video Outputs	VGA
SATA Ports	6
