2.4 Mechanical Considerations
2.4.1 Form Factor
The board is designed to fit into a MicroATX form-factor chassis. Figure 14 illustrates
the mechanical form factor for the board. Dimensions are given in inches
[millimeters]. The outer dimensions are 9.60 inches by 9.60 inches
[243.84 millimeters by 243.84 millimeters]. Location of the I/O connectors and
mounting holes are in compliance with the ATX specification.

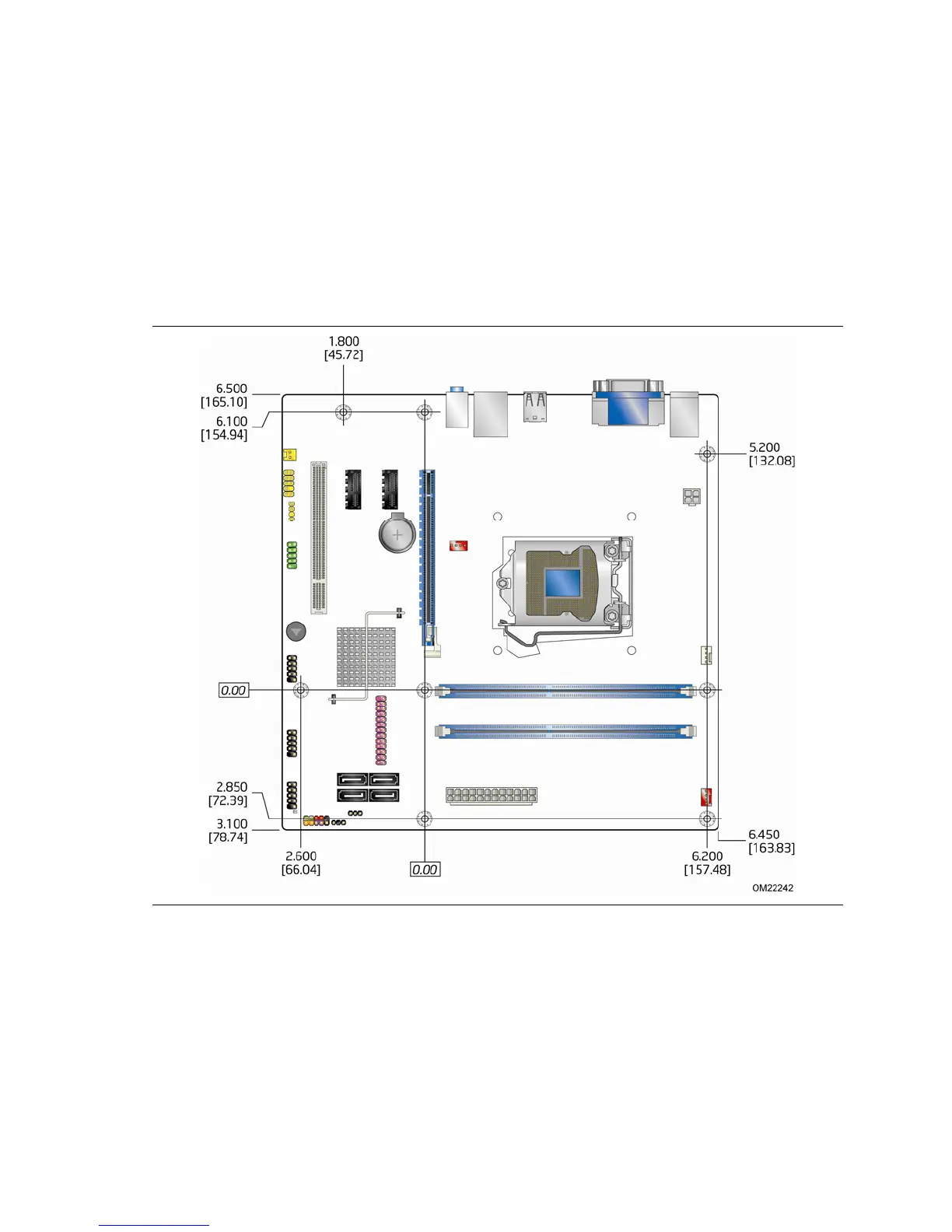

Figure 14. Board Dimensions

Intel DH55PJ Specifications

General

Form Factor	Micro ATX
Socket	LGA 1156
Memory Type	DDR3
Maximum Memory	8 GB
Memory Slots	2
PCI Express x16	1
PCI Express x1	2
PCI Slots	1
Chipset	Intel H55 Express
USB Ports	12
Video Outputs	VGA
SATA Ports	6
