LAN Subsystem
The LAN subsystem includes:
• Intel 82579V Gigabit (10/100/1000 Mb/s) Ethernet LAN controller
• RJ-45 LAN connector with integrated status LEDs
LAN software and drivers are available at http://downloadcenter.intel.com/
.
Two LEDs are built into the RJ-45 LAN connector located on the back panel
(see Figure 2). These LEDs indicate the status of the LA
N as shown in Table 3.

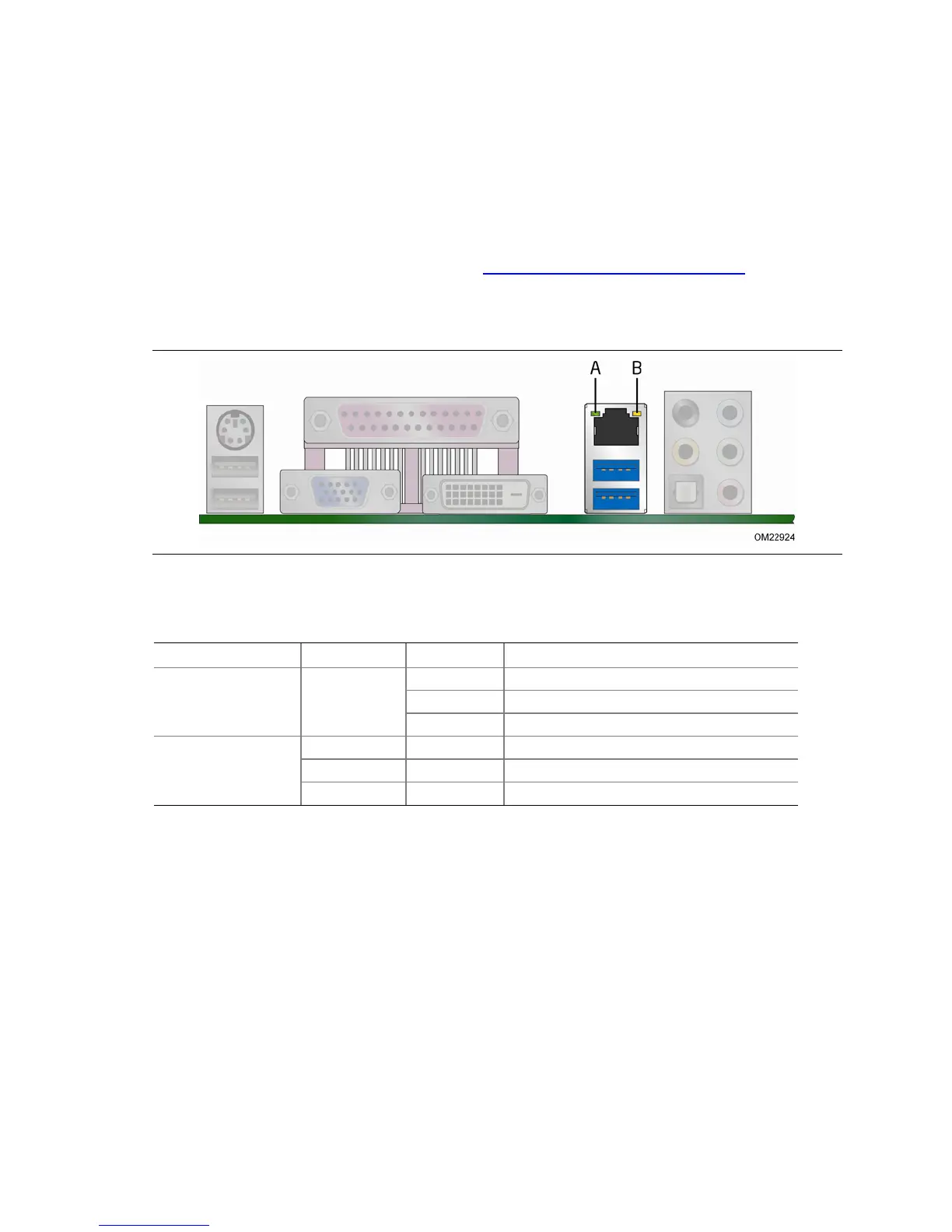

Figure 2. LAN Status LEDs
Table 3. LAN Status LEDs States
LED LED Color LED State Indicates
A (Link/Activity) Green Off LAN link is not established
On LAN link is established
Blinking LAN activity is occurring
B (Link Speed) N/A Off 10 Mb/s data rate
Green On 100 Mb/s data rate
Yellow On 1000 Mb/s data rate

Intel DH61BE Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Max Memory	16 GB
PCI Express x16	1
PCIe 2.0 x1 Slots	2
SATA Ports	4
RAID Support	No
Ethernet	10/100/1000 Mbps
Onboard Video	Yes
Video Output	DVI, VGA
