Intel DH61BE Product Guide

Installing and Replacing Desktop Board Components
35
4. Remove the processor from its protective cover. Hold the processor only at the
edges, being careful not to touch the bottom of the processor (see Figure 9).
NOTE
Do not discard the processor cover. Always replace the processor cover if you
remove the processor from the socket.

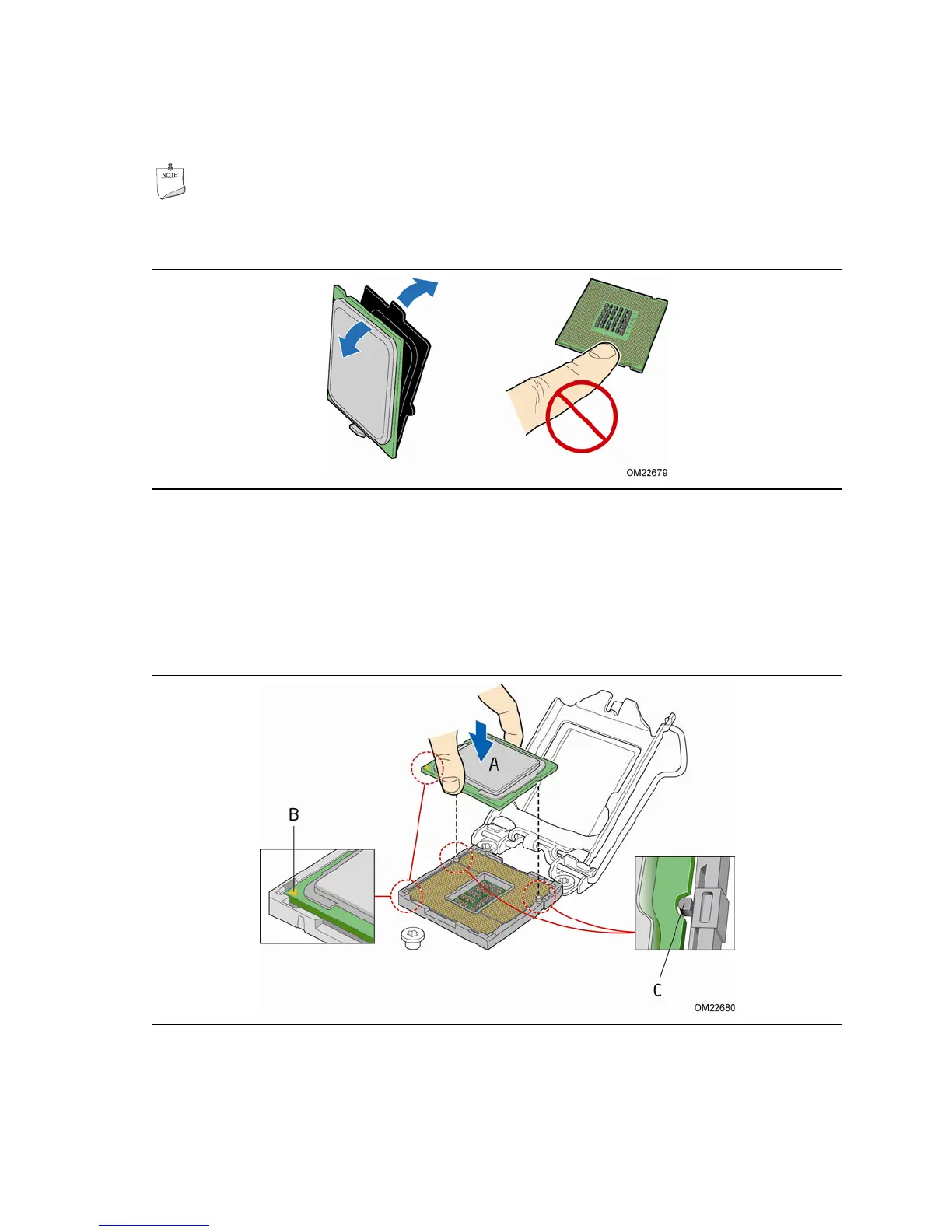

Figure 9. Remove the Processor from the Protective Cover
5. Hold the processor with your thumb and index finger oriented as shown
in Figure 10 to align your fingers with the sock
et finger cutouts. Make sure that
the processor Pin 1 indicator (gold triangle) is aligned with the Pin 1 chamfer on
the socket (Figure 10, B) and that the notches on the processor align with the
posts on the socket (Figure 10, C). Lower the processor straight down witho
ut
tilting or sliding it in the socket (Figure 10, A).
Figure 10. Install the Processor

Intel DH61BE Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Max Memory	16 GB
PCI Express x16	1
PCIe 2.0 x1 Slots	2
SATA Ports	4
RAID Support	No
Ethernet	10/100/1000 Mbps
Onboard Video	Yes
Video Output	DVI, VGA
