Intel Desktop Board DH61BE Product Guide
52
Connecting Power Supply Cables
CAUTION
Failure to use an appropriate power supply and/or not connecting the 12 V power
connector (Figure 22, A) to the Desktop Board may result in da
mage to the board or
the system may not function properly.
Figure 22 shows the location of the power connectors.
The 2 x 12 pin main power
connector (Figure 22, B) is backwards compatible with ATX12V power supplies with
2 x 10
connectors.
NOTE
If your power supply has a 2 x 10 main power connector, it is recommended that you
do not install a PCI Express x16 graphics card unless it has a direct connection to the
power supply.

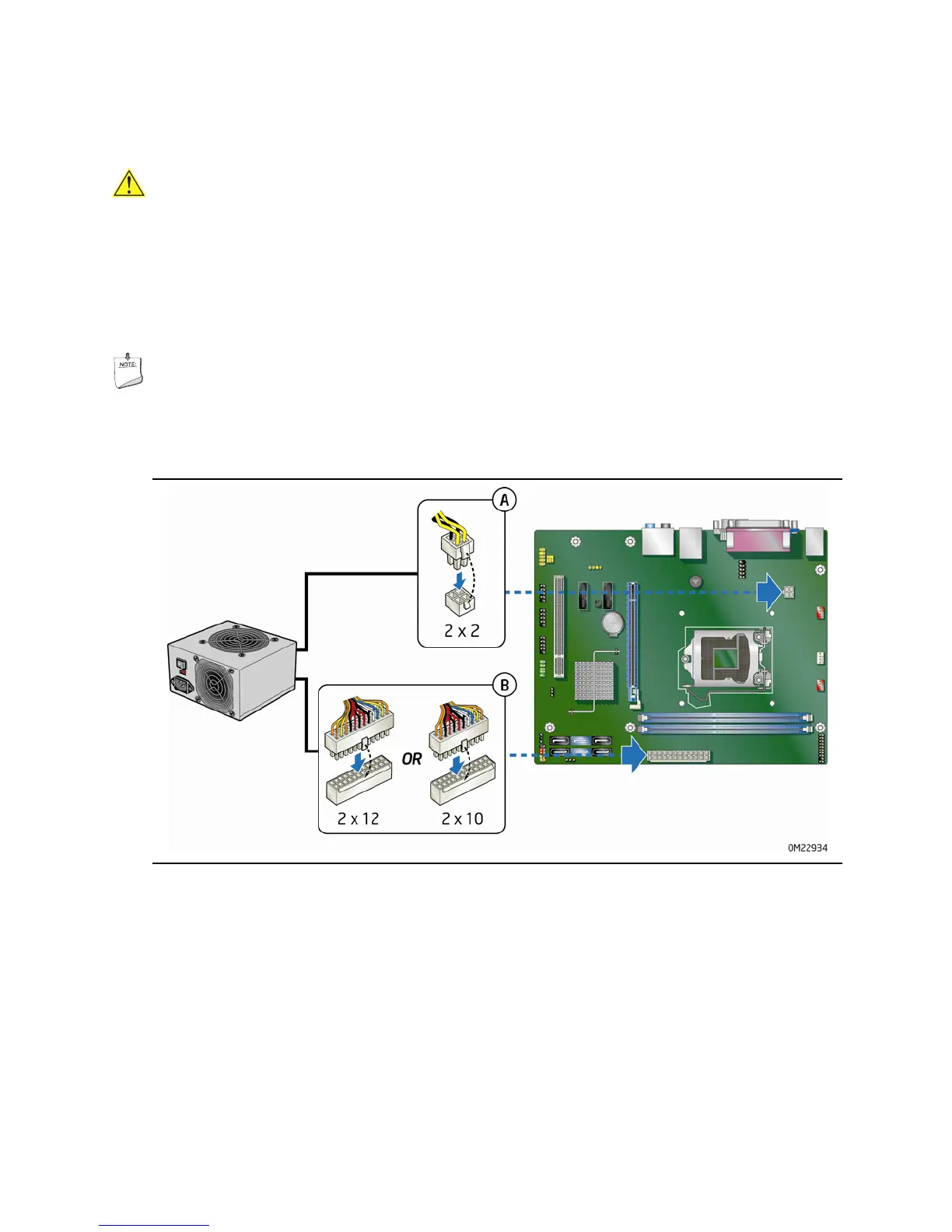

Figure 22. Connecting Power Supply Cables
1. Observe the precautions in "Before You Begin" on page 29.
2. Connect the 12 V processor core voltage power supply cable to the 2 x 2 pin
connector (Figure 22, A).
3. Con
nect the main power supply cable to the 2 x 12 pin connector (Figure 22, B).

Intel DH61BE Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Max Memory	16 GB
PCI Express x16	1
PCIe 2.0 x1 Slots	2
SATA Ports	4
RAID Support	No
Ethernet	10/100/1000 Mbps
Onboard Video	Yes
Video Output	DVI, VGA
