Intel DH61BE Product Guide

Installing and Replacing Desktop Board Components
43
Removing a PCI Express x16 Graphics Card
Follow these instructions to remove a PCI Express x16 graphics card from a connector:
1. Observe the precautions in "Before You Begin" on page 29.
2. Di
sconnect the monitor cable from the graphics card back panel connector.
3. Remove the screw (Figure 17, A) that secures the card’s metal bracket to the
chassis bac
k panel.
4. Push the card ejector lever down using the tip of a pencil or similar tool
(Figure 17, B) in the notch. This will release the card from the connector (C).
5. P
ull the card straight up to remove it.

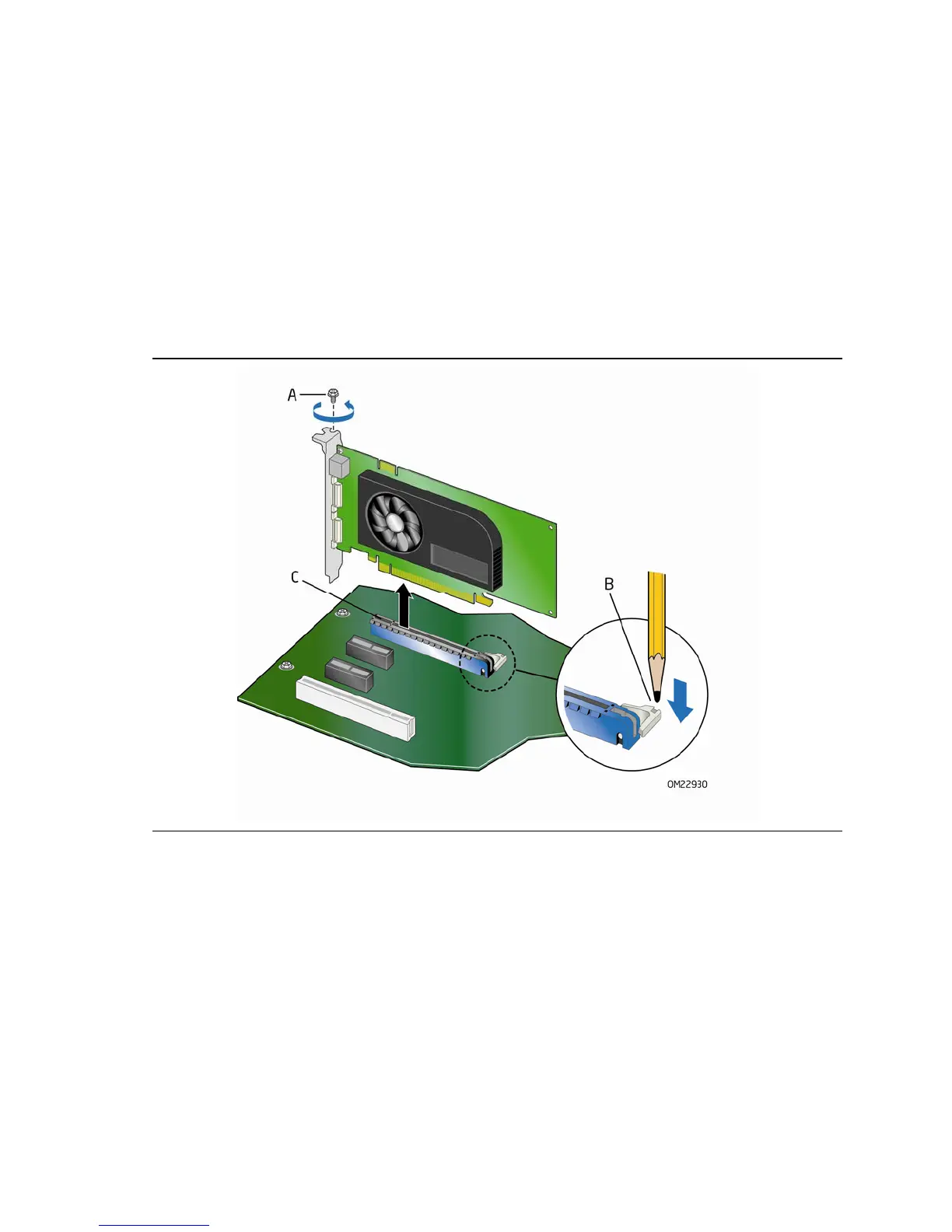

Figure 17. Removing a PCI Express x16 Graphics Card

Intel DH61BE Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Max Memory	16 GB
PCI Express x16	1
PCIe 2.0 x1 Slots	2
SATA Ports	4
RAID Support	No
Ethernet	10/100/1000 Mbps
Onboard Video	Yes
Video Output	DVI, VGA
