Connecting Serial ATA (SATA) Cables
SATA cables support the Serial ATA protocol. Each cable can be used to connect one
internal SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in “Before You Begin” on page 29.
2. Attach
one end of the SATA cable to one of the SATA connectors on the board
(Figure 18, A) and attach the other end of the
cable to the SATA drive
(Figure 18, B).

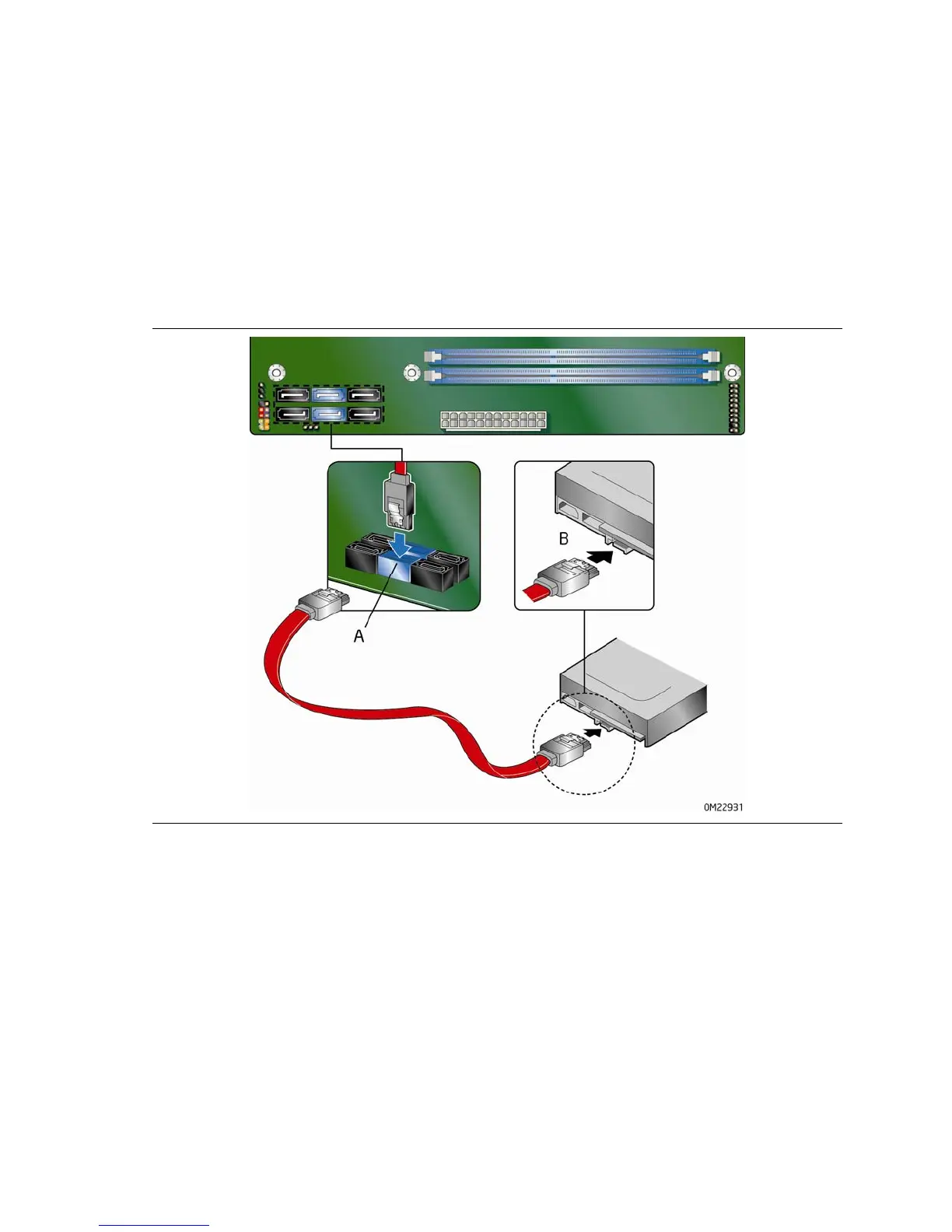

Figure 18. Connecting a Serial ATA Cable

Intel DH61BE Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Max Memory	16 GB
PCI Express x16	1
PCIe 2.0 x1 Slots	2
SATA Ports	4
RAID Support	No
Ethernet	10/100/1000 Mbps
Onboard Video	Yes
Video Output	DVI, VGA
