Desktop Board Features
31
+5 V Standby Power Indicator LED
CAUTION
If the AC power has been switched off and the standby power indicator is still lit,
disconnect the power cord before installing or removing any devices connected to the
board. Failure to do so could damage the board and any attached devices.
The Desktop Board’s standby power indicator LED, shown in Figure 4, is lit when there
is standby power still present on the board even when the computer appears to be off.
For example, when this green LED is lit, standby power is still present at the memory
module sockets and the PCI bus connectors.

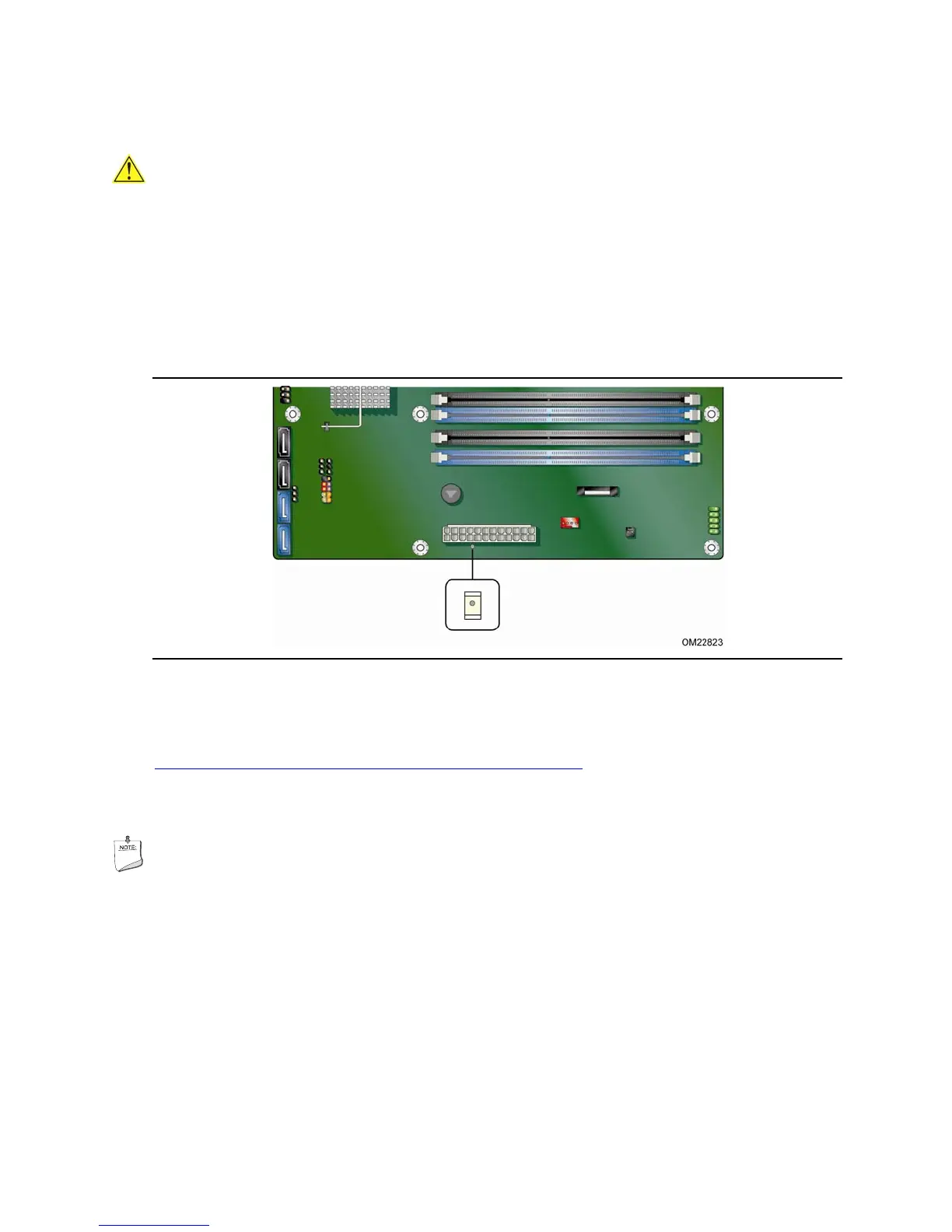

Figure 4. Location of the Standby Power Indicator
For more information on standby current requirements for the Desktop Board, refer to
the Technical Product Specification at
http://www.intel.com/support/motherboards/desktop/
.
Wake from USB
NOTE
Wake from USB requires the use of a USB peripheral that supports Wake from USB
and an operating system that supports Wake from USB.
USB bus activity wakes the computer from an ACPI S3 state.
PCI PME# Signal Wake-up Support
When the PME# signal on the Conventional PCI bus is asserted, the computer wakes
from an ACPI S3, S4, or S5 state.
