Intel DQ67SW User Manual

Installing and Replacing Desktop Board Components
49
Connecting Serial ATA (SATA) Cables
SATA cables support the Serial ATA protocol. Each cable can be used to connect one
internal SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in “Before You Begin” on page 33.
2. Attach
one end of the SATA cable to one of the SATA connectors on the board
(Figure 20, A) and attach the other end of the
cable to the SATA drive
(Figure 20, B).

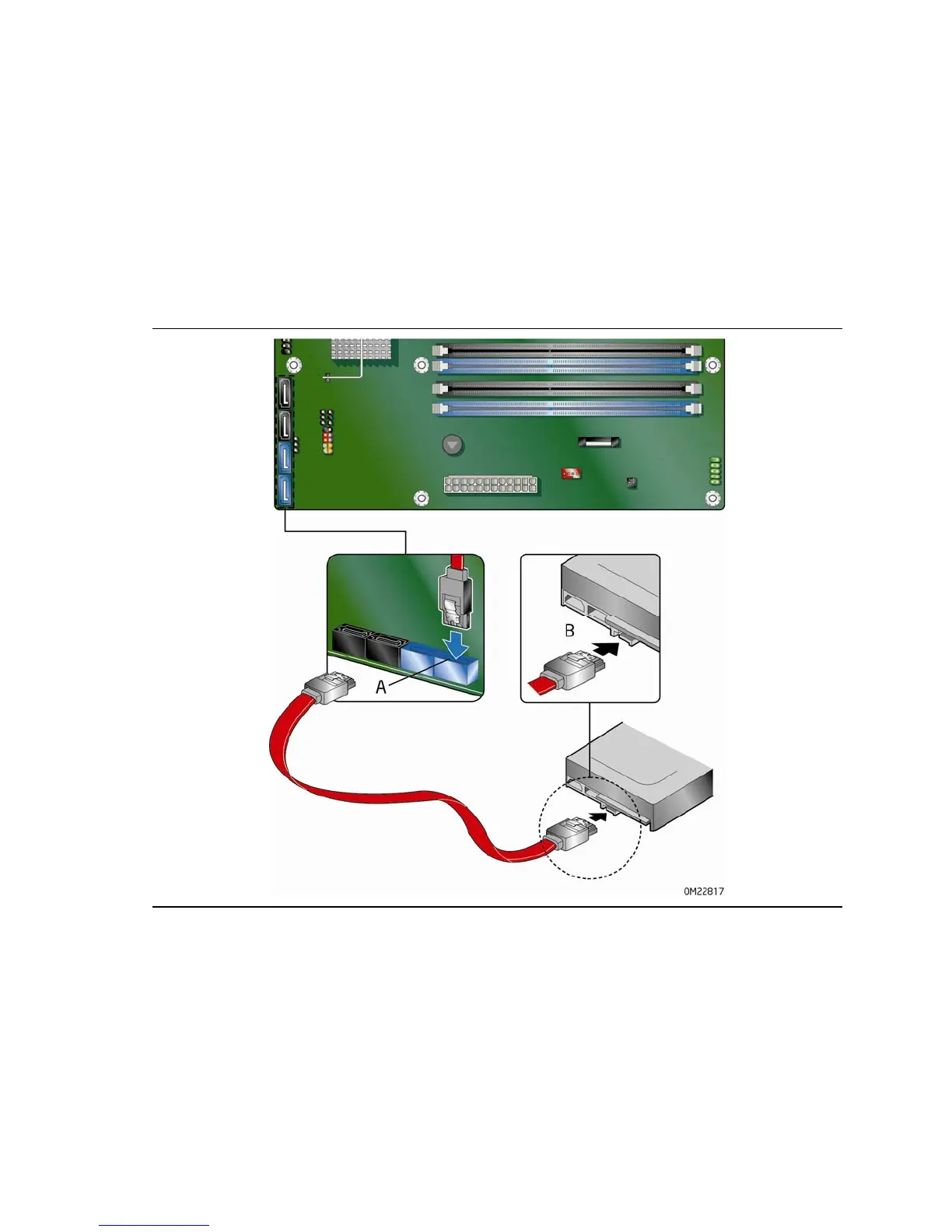

Figure 20. Connecting a Serial ATA Cable

Intel DQ67SW Specifications

General

Form Factor	Micro ATX
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	4
Maximum Memory	32 GB
PCI Express x16	1
PCI Express x1	2
PCI Slots	1
SATA 6Gb/s	2
SATA 3Gb/s	4
RAID Support	RAID 0, 1, 5, 10
Chipset	Intel Q67 Express
USB 2.0 Ports	10
USB 3.0 Ports	2
Ethernet	1 x Gigabit Ethernet
Video Outputs	DisplayPort
