Intel Desktop Board DQ67SW Product Guide
44
Installing DIMMs
To make sure you have
the correct DIMM, place it on the i
llustration of the DDR3
DIMM in
Figure 16.
All the notches shoul
d match with the
DDR3 DIMM.

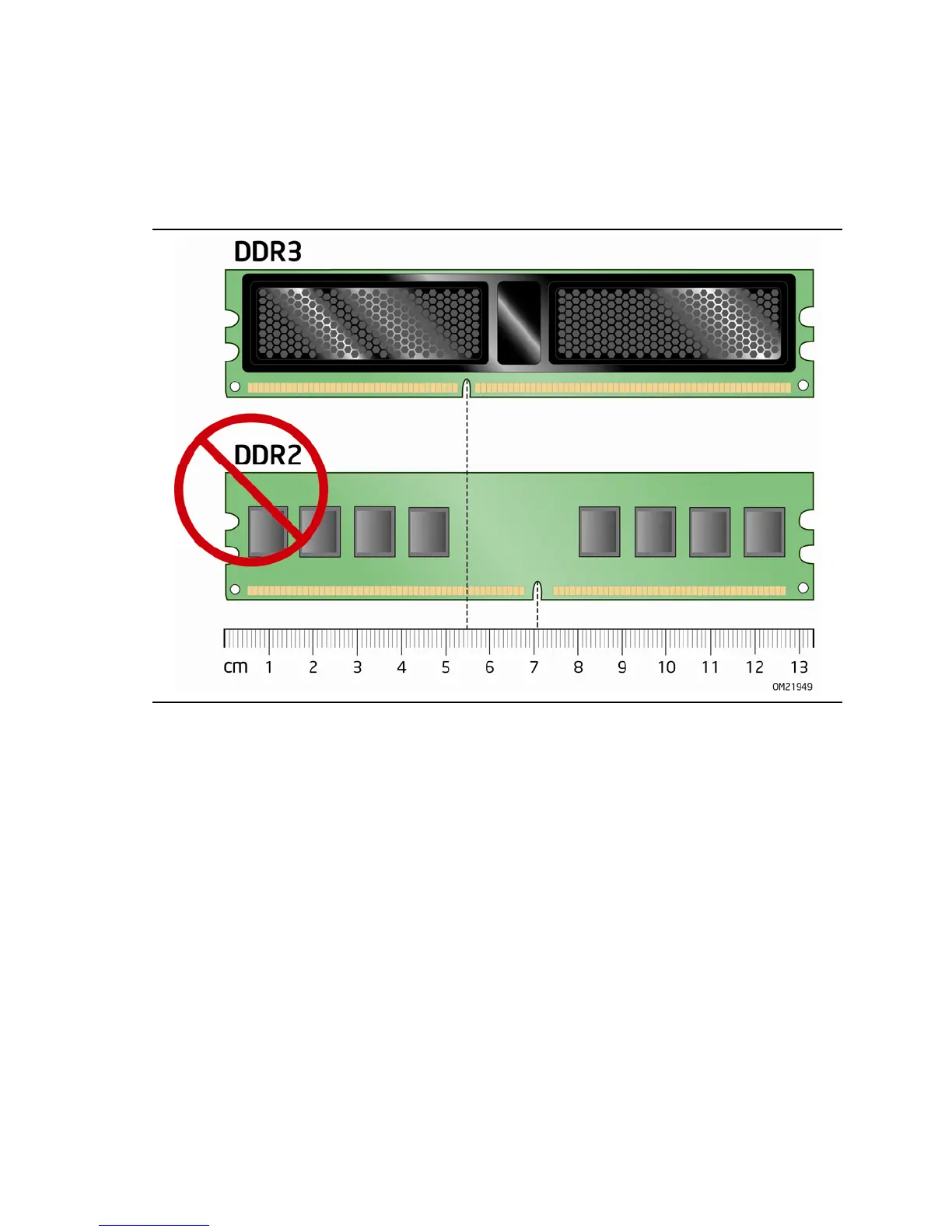

Figure 16. Use DDR
3 DIMMs
43
45
