Intel DQ67SW - Lift the Load Plate

Intel Desktop Board DQ67SW Product Guide
38
3. Rotate the socket lever to lift the load plate away from the socket (Figure 8, A).
Make sure that the load plate is in the fully open position (Figure 8, B) while being
careful not
to damage adjacent components. Do not touch the socket contacts.

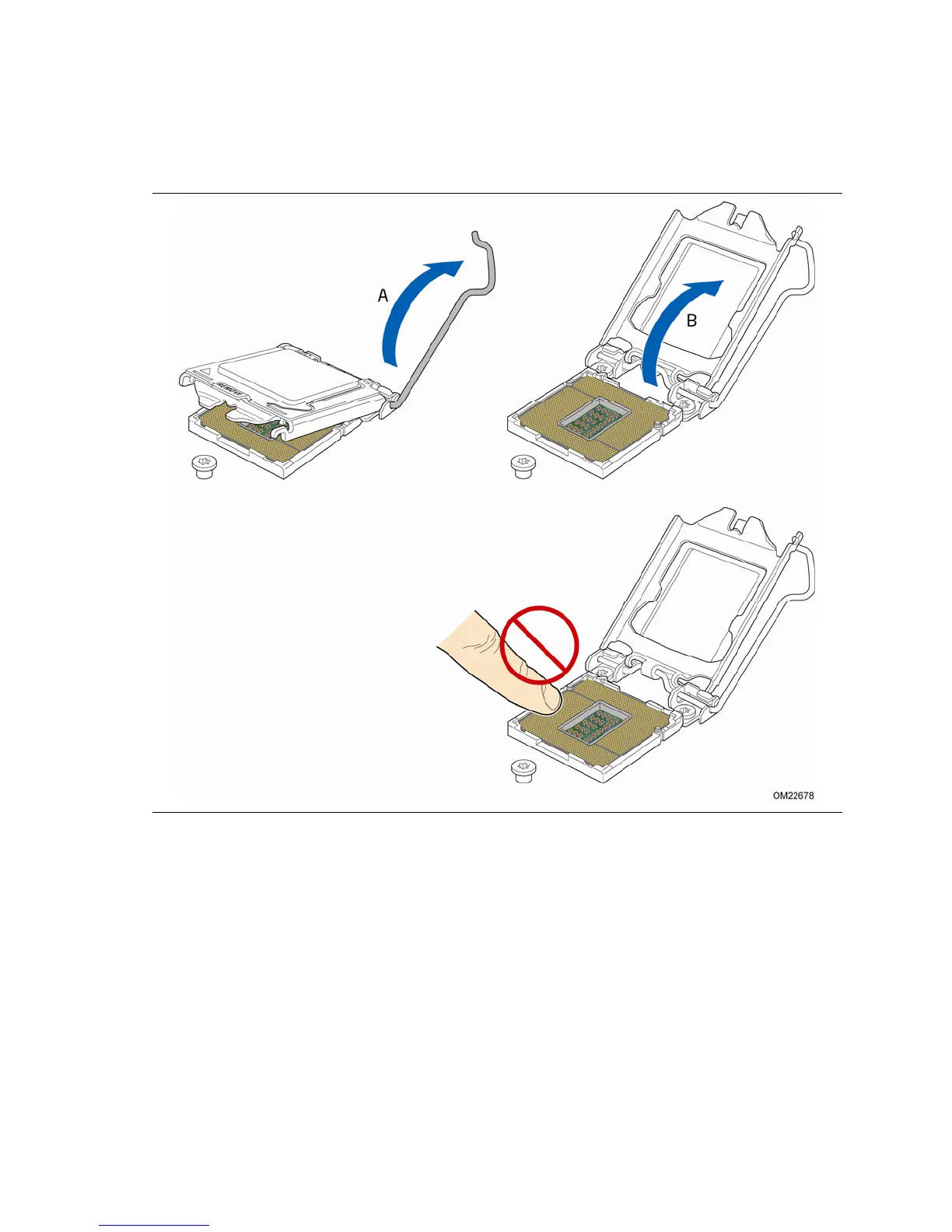

Figure 8. Lift the Load Plate
