Intel Desktop Board DQ67SW Product Guide
36
Installing and Removing the Desktop Board
CAUTION
Only qualified technical personnel should perform this procedure. Disconnect the
computer from its power source before performing the procedures described here.
Failure to disconnect the power before you open the computer can result in personal
injury or equipment damage.
Refer to your chassis manual for instructions on installing and removing the Desktop
Board.
Figure 6 shows the location of the mounti
ng screw holes for Intel Desktop Board
DQ67SW.

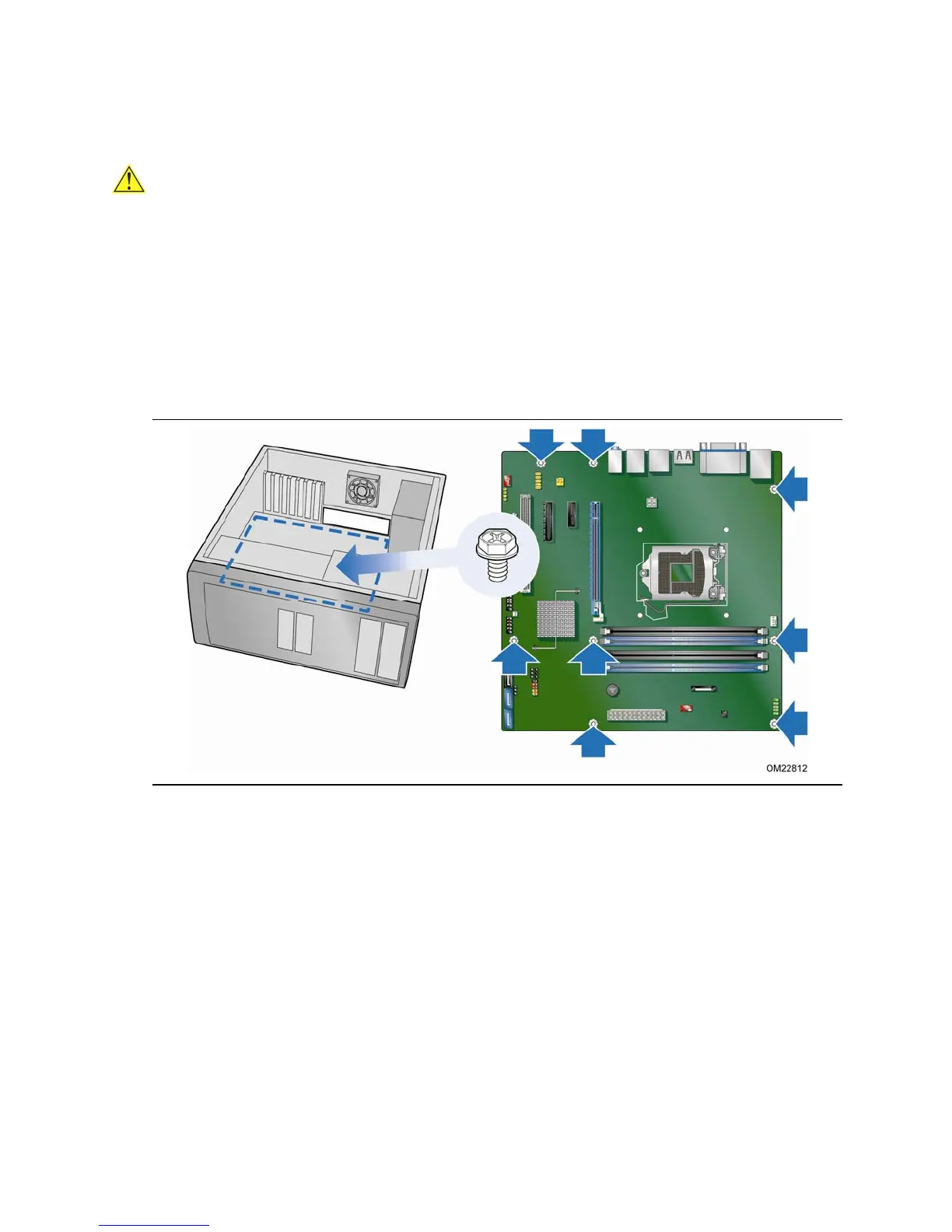

Figure 6. Intel Desktop Board DQ67SW Mounting Screw Hole Locations

Table of Contents

Other manuals for Intel DQ67SW

Preview: Specification
Specification6 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Intel DQ67SW and is the answer not in the manual?

Intel DQ67SW Specifications

General IconGeneral
Form FactorMicro ATX
SocketLGA 1155
Memory TypeDDR3
Memory Slots4
Maximum Memory32 GB
PCI Express x161
PCI Express x12
PCI Slots1
SATA 6Gb/s2
SATA 3Gb/s4
RAID SupportRAID 0, 1, 5, 10
ChipsetIntel Q67 Express
USB 2.0 Ports10
USB 3.0 Ports2
Ethernet1 x Gigabit Ethernet
Video OutputsDisplayPort
