Product Description
21

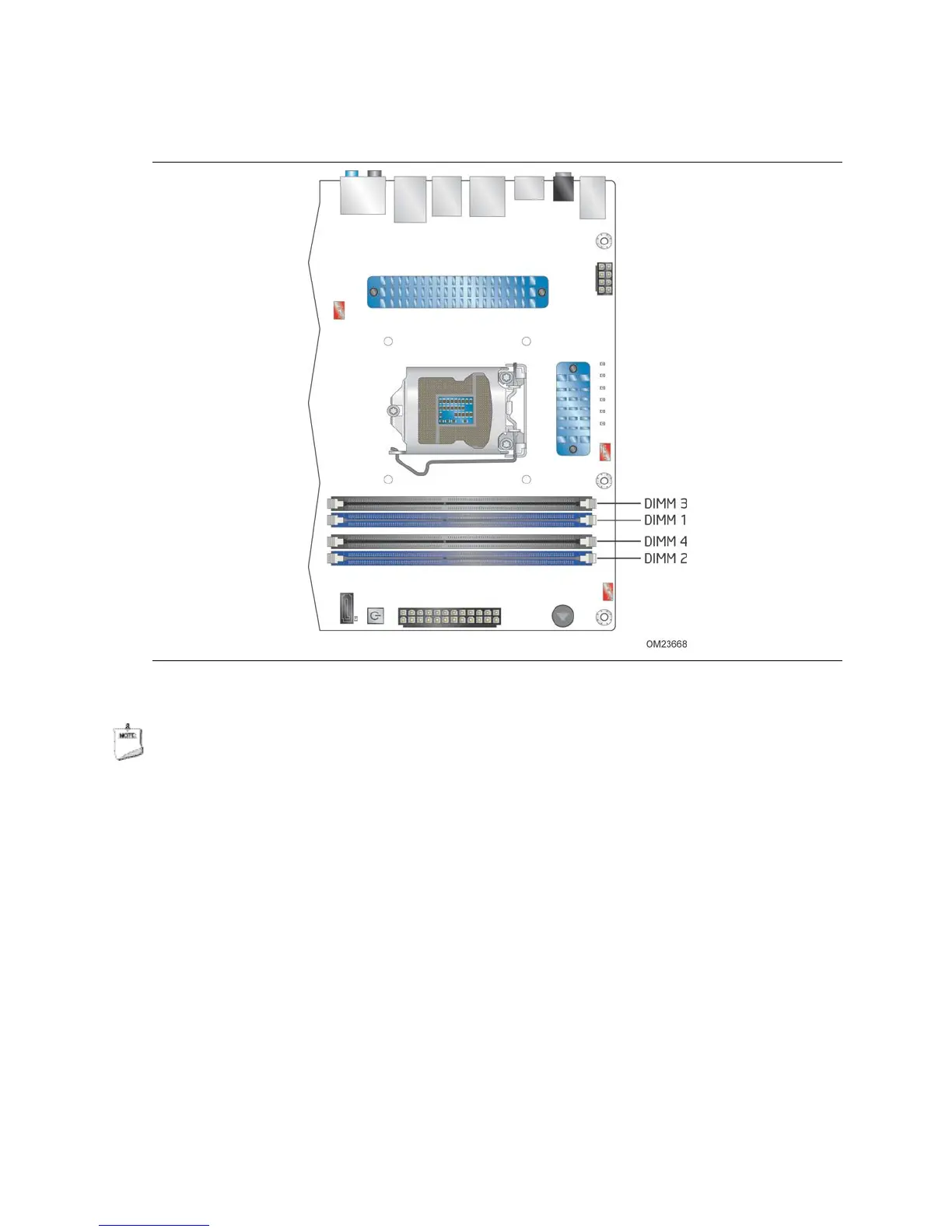

Figure 3 illustrates the DIMM configuration.
Figure 3. DIMM Configuration
NOTE
For best memory performance always install memory in the blue DIMM sockets if
installing only two DIMMs on your board.
