Intel DZ77BH-55K - Thermal Monitoring; Thermal Sensors and Fan Headers

Product Description
33
1.10.4 Thermal Monitoring
Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Rear chassis fan header
B Thermal diode, located on the VR zone
C Thermal diode, located on the VR zone
D Thermal diode, located on the VR zone
E Processor fan header
F Thermal diode, located on processor die
G Thermal diode, located on the VR zone
H Front chassis fan header
I Thermal diode, located on the Intel Z77 Express
Chipset
J Auxiliary fan header

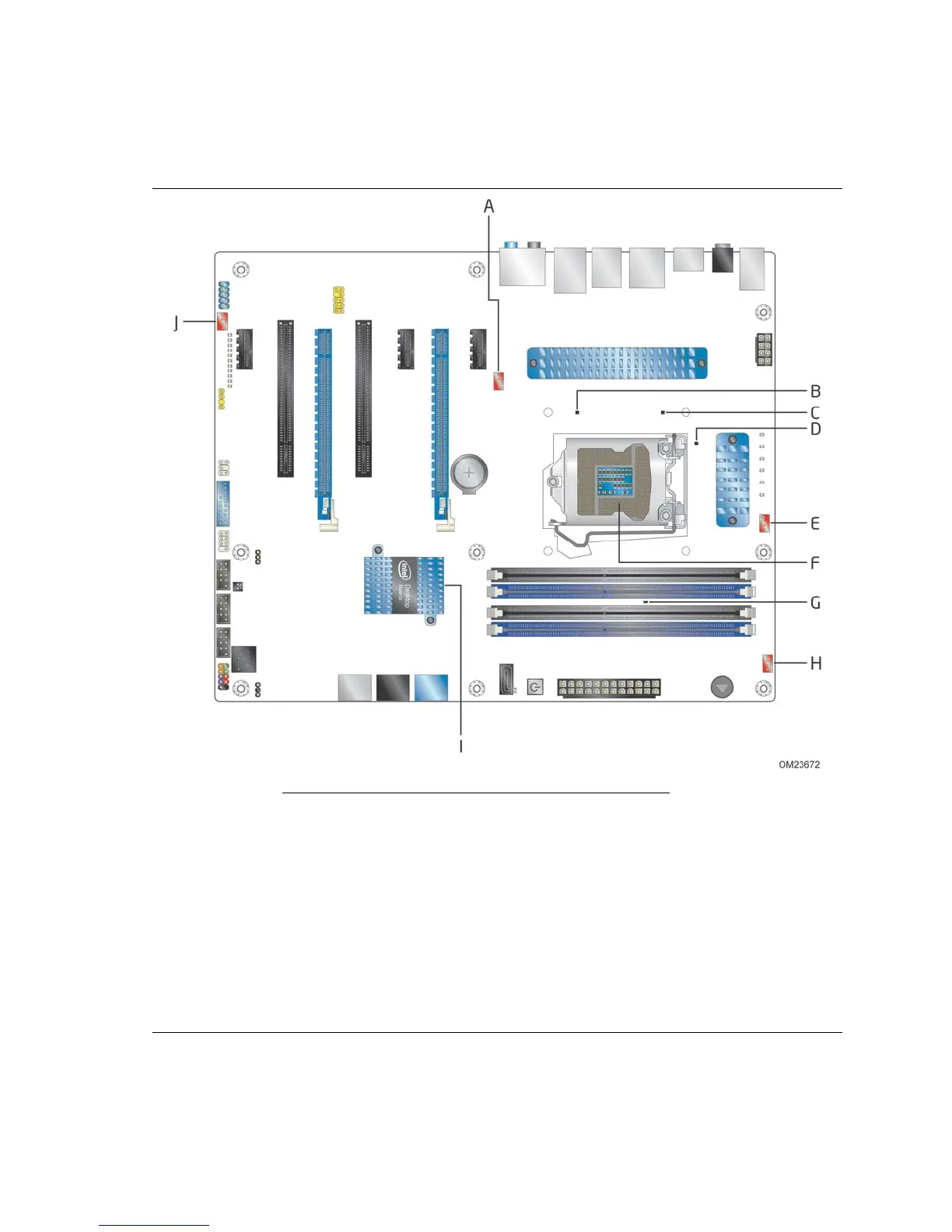

Figure 6. Thermal Sensors and Fan Headers
