Intel DZ77BH-55K User Manual

Technical Reference
65

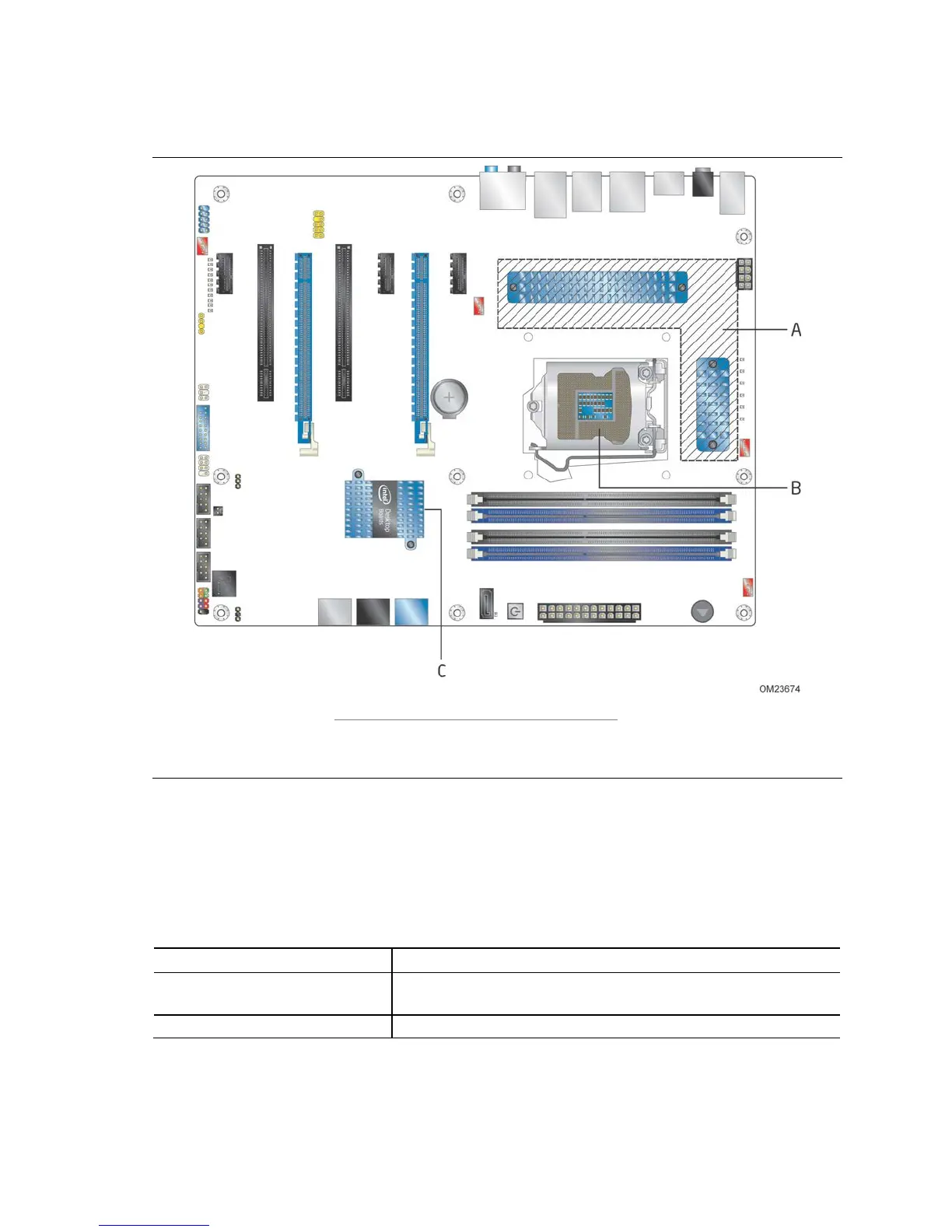

Figure 18 shows the locations of the localized high temperature zones.
Item Description
A Processor voltage regulator area
B Processor
C Intel Z77 Express Chipset
Figure 18. Localized High Temperature Zones
Table 35 provides maximum case temperatures for the components that are sensitive
to thermal changes. The operating temperature, current load, or operating frequency
could affect case temperatures. Maximum case temperatures are important when
considering proper airflow to cool the board.
Table 35. Thermal Considerations for Components
Component Maximum Case Temperature
Processor For processor case temperature, see processor datasheets and
processor specification updates
Intel Z77 Express Chipset 104
o
C (under bias)

Intel DZ77BH-55K Specifications

General

Brand	Intel
Model	DZ77BH-55K
Category	Motherboard
Language	English
